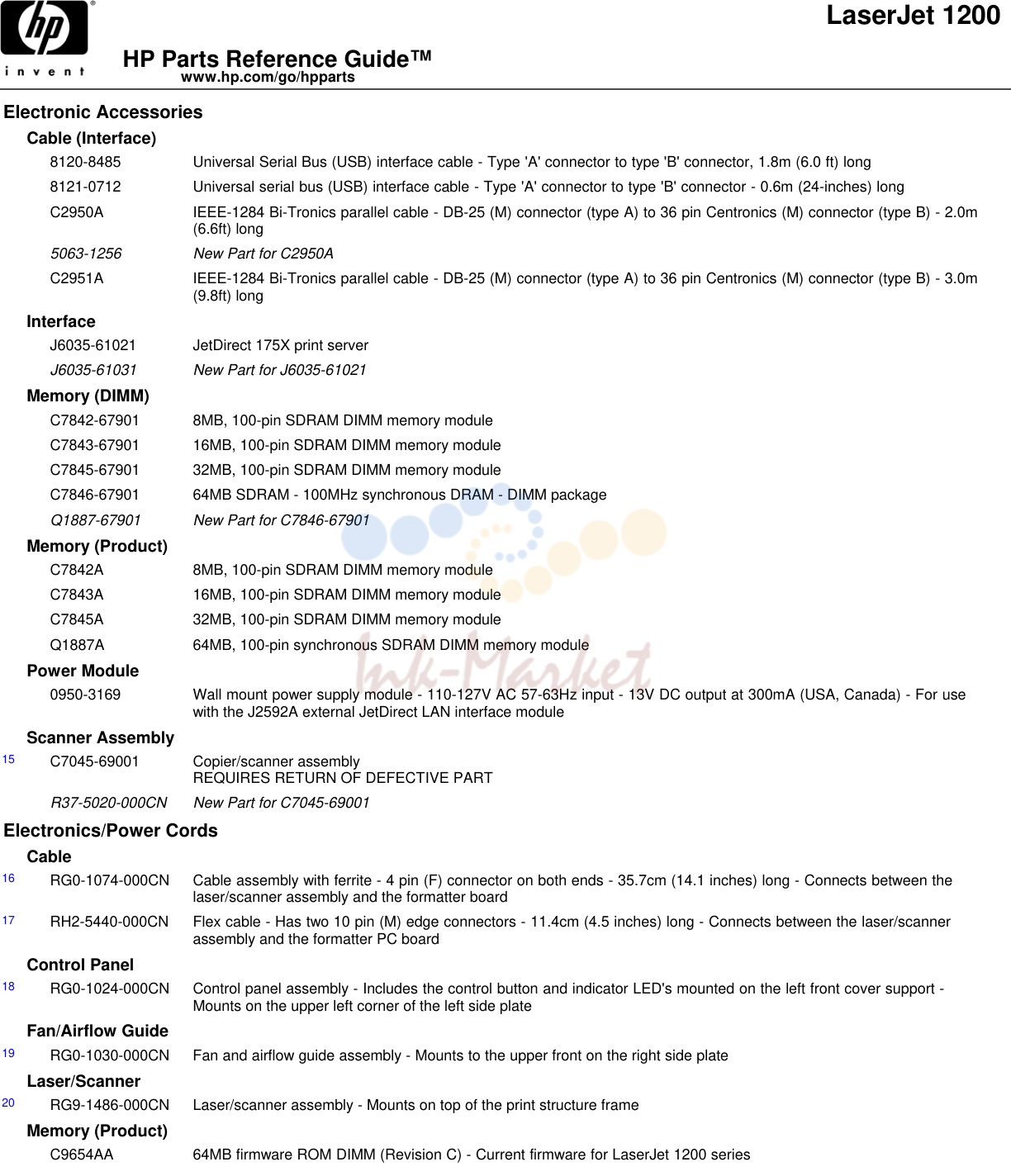

| 15 | C7045-69001 запросить цену → | | Copier/scanner assembly |
| 16 | RG0-1074-000CN запросить цену → | | Cable assembly with ferrite - 4 pin (F) connector on both ends - 35.7cm (14.1 inches) long - Connects between the |
| 17 | RH2-5440-000CN запросить цену → | | Flex cable - Has two 10 pin (M) edge connectors - 11.4cm (4.5 inches) long - Connects between the laser/scanner |
| 18 | RG0-1024-000CN запросить цену → | | Control panel assembly - Includes the control button and indicator LED's mounted on the left front cover support - |
| 19 | RG0-1030-000CN запросить цену → | | Fan and airflow guide assembly - Mounts to the upper front on the right side plate |
| 20 | RG9-1486-000CN запросить цену → | | Laser/scanner assembly - Mounts on top of the print structure frame |
| 22 | C7857-60001 запросить цену → | | Formatter PC board - Includes connectors for the USB and parallel ports, and optional copier/scanner - Mounts on the |
| 23 | RG0-1012-040CN запросить цену → | | Engine control PC board - Control and power supply board for the printer (For 110V to 127V operation) - Mounts in the |
| 24 | RG0-1029-000CN запросить цену → | | Engine control PC board - Control and power supply board for the printer (For 220V to 240V operation) - Mounts in the |
| 32 | RG0-1072-000CN запросить цену → | | Paper sensor PC board - Small board with optical flag sensor (Flag not included) - For sensing leading edge of paper - |
| 33 | RG0-1082-000CN запросить цену → | | Delivery sensor PC board - Small board with optical flag sensor (Flag not included) - For sensing paper output - Mounts |
| 34 | RH7-5284-000CN запросить цену → | | 24V DC Solenoid - Engages the pick-up roller gear/clutch assembly - Mounts on the right side plate |
| 35 | RA0-1035-000CN запросить цену → | | Torsion spring - Provides high voltage connection to the toner cartridge (developing cylinder) - Mounts between the |
| 36 | RA0-1200-000CN запросить цену → | | Torsion spring - Provides high voltage connection to the toner cartridge (primary charging roller) - Mounts behind the |
| 37 | RA0-1177-000CN запросить цену → | | Front cover - Lower front of printer - With opening for inserting the paper input tray assembly |
| 38 | RA0-1178-000CN запросить цену → | | Right side cover assembly - Has molded-in air intake louvers |
| 39 | RA0-1179-000CN запросить цену → | | Left side printer cover - Covers the USB and parallel port Connectors (On the formatter board) |
| 40 | RA0-1183-000CN запросить цену → | | Connector cover - Small rectangular plastic cover - Mounts on top of the left side cover - Covers the connector for the |
| 41 | RG0-1016-000CN запросить цену → | | Rear cover assembly - Includes rear cover and fold down face-up (or straight through) paper output tray (Tray is NOT |
| 42 | RG0-1017-020CN запросить цену → | | Top cover assembly - Has face-down paper output tray molded into it - Mounts to top of printer |
| 43 | RG0-1015-000CN запросить цену → | | Toner cartridge door - Fold down door used when accessing the toner cartridge - Mounts to the top of the front cover |
| 44 | RA0-1003-000CN запросить цену → | | Rubber foot - Used for the rear feet on the bottom of printer - Mounts on the front bottom frame of the paper pick-up |
| 45 | RA0-1197-000CN запросить цену → | | Rubber foot - Used for the front feet on the bottom of the printer - Mounts on the bottom of the right and left side plate |
| 46 | 7121-8042 запросить цену → | | HP logo (jewel) - For HP LaserJet series printers - Mounts to the toner cartridge door |
| 47 | RA0-1127-000CN запросить цену → | | Support pan (case) for the print engine controller board - Metal pan which also acts as part of the bottom of the printer |
| 48 | RA0-1104-000CN запросить цену → | | Roller bushing/retainer - Mounts on the right end of the face-up output roller and retains it in the fusing assembly |
| 49 | RA0-1088-000CN запросить цену → | | 29 tooth gear - Mounts on the end of the pressure roller - Largest of the three gears on the fusing assembly |
| 50 | RA0-1089-000CN запросить цену → | | 17 tooth gear - Mounts on the end of the face-up output roller - Center gear of three gears on the fusing assembly |
| 51 | RF0-1003-000CN запросить цену → | | Face-up (straight through) output roller - Metal shaft with two rollers - Mounts in the fusing assembly behind the pressure |
| 52 | RG0-1010-000CN запросить цену → | | Output roller assembly - Includes face-down delivery roller, 4 spring-loaded presure rollers, support frame, and drive |
| 53 | RG0-1082-000CN запросить цену → | | Delivery sensor PC board - Small board with optical flag sensor (Flag not included) - For sensing paper output - Mounts |
| 69 | RY7-5082-000CN запросить цену → | | Screw kit - Includes nine bags of different size screws - This is a complete set of screws for the LaserJet 1000 and |
| 70 | RA0-1185-000CN запросить цену → | | Left side fuser bracket ('L' Shaped) - Provides mounting support for the fusing assembly - Mounts to the upper rear |
| 71 | RA0-1186-000CN запросить цену → | | Right side fuser bracket ('L' Shaped) - Provides mounting support for the fusing assembly - Mounts to the upper rear |
| 72 | WT2-5694-000CN запросить цену → | | Snap-in cable clamp - Secures the drive motor cable from the controller PC board to the metal support pan |
| 73 | RA0-1176-000CN запросить цену → | | 69 tooth gear - Large gear with ribs and six small holes - Mounts on on a rod in the upper rear corner of the right side |
| 74 | RA0-1172-000CN запросить цену → | | 17 tooth gear assembly - Includes the 17 tooth gear mounted on a black plastic bracket - Mounts to the right side plate |
| 75 | RG0-1020-000CN запросить цену → | | Gear/clutch assembly (Solenoid activiated) - Includes the two gear bodies and internal spring - Drives the pickup roller in |
| 76 | RA0-1181-000CN запросить цену → | | Guide - For the shutter lever on the laser/scanner assembly - Mounts on the metal support bracket for the laser/scanner |
| 77 | RG0-1022-000CN запросить цену → | | Front guide assembly - Ribbed plastic piece that runs the width of the printer - Mounts to the front of the left and right |
| 78 | RA0-1182-000CN запросить цену → | | Shutter lever - Spring loaded lever - Mounts to the top of the laser/scanner assembly |
| 79 | RA0-1023-000CN запросить цену → | | Connecting link - Connects between the sliding linkage on the left and right side plates and the toner cartridge access |
| 80 | RH7-1473-000CN запросить цену → | | Stepper motor assembly - Drives all rollers amd fusing assembly via the gear train on the right side plate - Mounts on |
| 81 | RG0-1001-040CN запросить цену → | | Right side plate assembly - Includes the right side plate, drive motor, most all drive gears, and cam levers - Does not |
| 82 | RG0-1002-060CN запросить цену → | | Left plate assembly - Left side of internal printer mechanism - Plate that the formatter PC board mounts to |
| 83 | C7044-00001 запросить цену → | | RFI shield - Metal plate that covers the formatter board - Mounts on the left side plate |
| 84 | RA0-1128-000CN запросить цену → | | Printed circuit board spacer - Mounts between the print engine control board and the metal support pan (six used) |
| 85 | RA0-1169-000CN запросить цену → | | Compression spring - Provides tension for the shutter lever - Mounts between the shutter lever and the laser/scanner |
| 86 | RA0-1175-000CN запросить цену → | | Tension spring - Provides tension for lever - Mounts on the lower front on the right side plate |
| 87 | RA0-1173-000CN запросить цену → | | Mounting support - Metal piece that supports the paper pick-up solenoid (SL001) - Mounts on the right side plate |
| 88 | RA0-1184-000CN запросить цену → | | Right side cover mounting support - Front Cover support - Mounts on the upper right corner of the right side plate |
| 89 | RG9-1493-000CN запросить цену → | | Fusing assembly - Bonds toner to paper with heat (For 100V to 120V operation) - Mounts in the upper rear of the printer |
| 90 | RG9-1494-000CN запросить цену → | | Fusing assembly - Bonds toner to paper with heat (For 220V to 240V operation) - Mounts in the upper rear of the printer |
| 91 | RY7-5055-000CN запросить цену → | | Scanner separation pad kit - Kit includes separation pad, separation backing pad and separation pad holder |
| 92 | RG9-1486-000CN запросить цену → | | Laser/scanner assembly - Mounts on top of the print structure frame |
| 93 | RG0-1003-000CN запросить цену → | | Paper pick-up assembly - Includes the pick-up roller, feed roller assembly, separation pad, plastic housing and other |
| 94 | RF0-1008-000CN запросить цену → | | Paper Pick-up Roller ('D' shaped roller) - Picks up media from the paper input tray - Clips in the holder on the paper pick |
| 95 | RG9-1483-000CN запросить цену → | | Transfer roller assembly - Transfers static charge to the media being printed on - Mounts in the top rear of the paper |
| 96 | RA0-1003-000CN запросить цену → | | Rubber foot - Used for the rear feet on the bottom of printer - Mounts on the front bottom frame of the paper pick-up |
| 97 | RY7-5081-000CN запросить цену → | | Gear/clutch assembly kit - Includes 19-tooth/31-tooth double-gear body, ratcheted shaft piece and spring - For driving |
| 98 | RF0-1014-000CN запросить цену → | | Separation pad assembly - Mounts on a spring loaded arm in the paper pick-up assembly |
| 99 | RG0-1003-000CN запросить цену → | | Paper pick-up assembly - Includes the pick-up roller, feed roller assembly, separation pad, plastic housing and other |
| 100 | RG0-1006-000CN запросить цену → | | Paper lift plate assembly - Plastic plate assembly that includes the two blue paper width adjusters - Mounts to the top |
| 101 | RF0-1008-000CN запросить цену → | | Paper Pick-up Roller ('D' shaped roller) - Picks up media from the paper input tray - Clips in the holder on the paper pick |
| 102 | RG0-1005-000CN запросить цену → | | Paper feed roller assembly - Includes feed roller, feed roller base assembly, retainer bushings, paper input leading edge |
| 103 | RG0-1072-000CN запросить цену → | | Paper sensor PC board - Small board with optical flag sensor (Flag not included) - For sensing leading edge of paper - |
| 104 | RG0-1007-020CN запросить цену → | | Paper pick-up shaft assembly - Includes the shaft, the two cams, pick-up roller holder, and end cap - Mounts in the |
| 105 | RA0-1035-000CN запросить цену → | | Torsion spring - Provides high voltage connection to the toner cartridge (developing cylinder) - Mounts between the |
| 106 | RA0-1200-000CN запросить цену → | | Torsion spring - Provides high voltage connection to the toner cartridge (primary charging roller) - Mounts behind the |
| 107 | RG0-1014-000CN запросить цену → | | Paper tray cover assembly - Includes clear plastic cover with blue width adjustment guides for 'priority' paper input - |
| 108 | RG0-1016-000CN запросить цену → | | Rear cover assembly - Includes rear cover and fold down face-up (or straight through) paper output tray (Tray is NOT |
| 109 | RG0-1017-020CN запросить цену → | | Top cover assembly - Has face-down paper output tray molded into it - Mounts to top of printer |
| 110 | RG0-1013-000CN запросить цену → | | Printer input paper tray assembly - Includes bottom tray, blue paper length adjustment lever, and extension arm (Does |
| 111 | RG0-1069-000CN запросить цену → | | Pick-up tray assembly - Paper input tray for the optional copier/scanner assembly |
| 112 | RG0-1070-000CN запросить цену → | | Face-down tray assembly - Paper output tray for the optional copier/scanner assembly |
