Dell 2150cn — каталог запчастей со схемами

Содержание

• 1. Chapter 5 Parts List
• 2. Chapter 5 Parts List
• 3. Chapter 5 Parts List
• 4. Chapter 5 Parts List
• 5. Chapter 5 Parts List
• 6. Chapter 5 Parts List
• 7. Chapter 5 Parts List
• 8. Chapter 5 Parts List
• 9. Chapter 5 Parts List
• 10. Chapter 5 Parts List
• 11. Chapter 5 Parts List
• 12. Chapter 5 Parts List
• 13. Chapter 5 Parts List
• 14. Chapter 5 Parts List
• 15. Chapter 5 Parts List
• 16. Chapter 5 Parts List
• 17. Chapter 5 Parts List
• 18. Chapter 5 Parts List
• 19. Chapter 5 Parts List

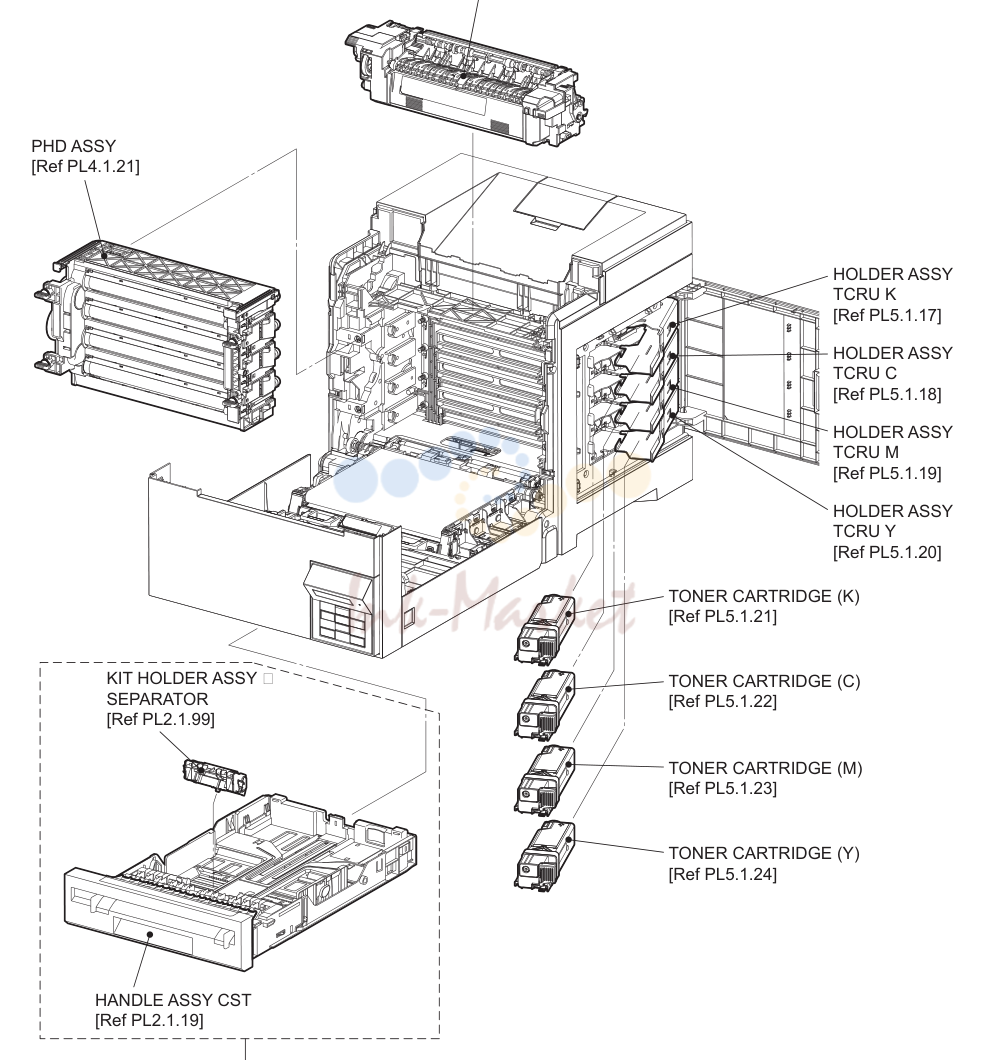

1. Chapter 5 Parts List

№	Артикул	Альт. артикул	Описание
1			COVER ASSY TOP
2			TRAY EXT
3			COVER REAR
6			COVER SIDE R
7			COVER ASSY WINDOW TNR
19			COVER SIDE L
99			KIT COVER ASSY WINDOW TNR (with 7, Instruction)

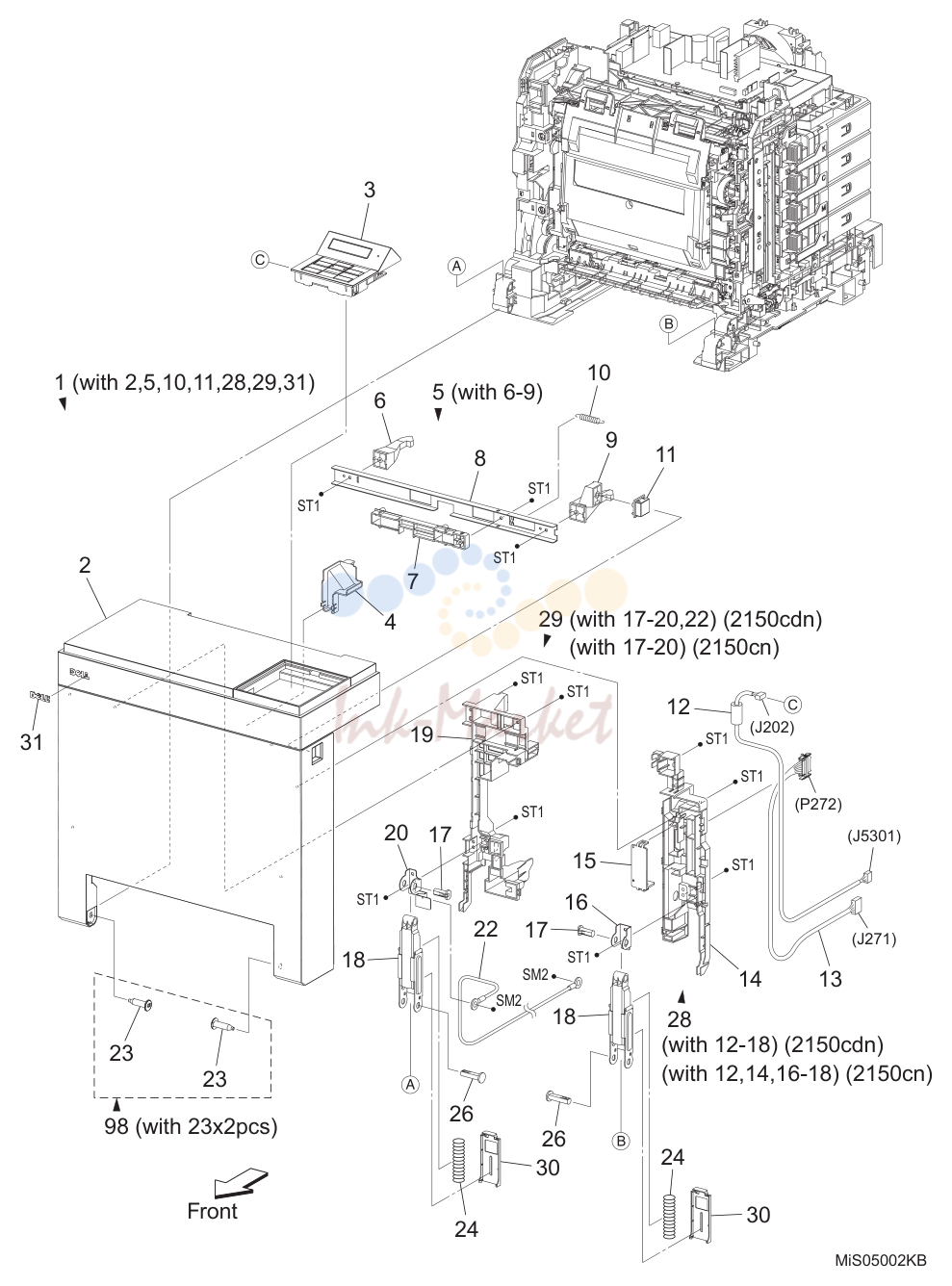

2. Chapter 5 Parts List

№	Артикул	Альт. артикул	Описание
1			COVER ASSY FRONT MG (with 2,5,10,11,28,29,31)
2			COVER FRONT
3			CONSOLE ASSY PANEL
4			COVER CONNECTOR
5			LATCH ASSY FRONT (with 6-9)
6			LATCH FRONT L
7			LATCH FRONT DUP
8			PLATE LATCH
9			LATCH FRONT R
10			SPRING LATCH FRONT
11			BUTTON LATCH FRONT
12			HARNESS ASSY PNL A (J202-J5301)
13			HARN ASSY DUP RELAY (J271-P272) (2150cdn Only)
14			HOLDER FRONT R
15			COVER DRAWER (2150cdn Only)
16			BRACKET HOLDER R
17			SHAFT LINK FRONT
18			LINK ASSY FRONT
19			HOLDER FRONT L
20			BRACKET HOLDER L
22			HARN ASSY GND (2150cdn Only)
23			SHAFT PIVOT
24			SPRING LINK FRONT
26			SHAFT LINK FRONT FDR
28			HOLDER ASSY FRONT R (with 12-18) (2150cdn Only)
29			HOLDER ASSY FRONT L (with 17-20,22) (2150cdn Only)
30			COVER LINK FRONT
31			PLATE NAME KM
98			KIT SHAFT PIVOT (with 23x2pcs)

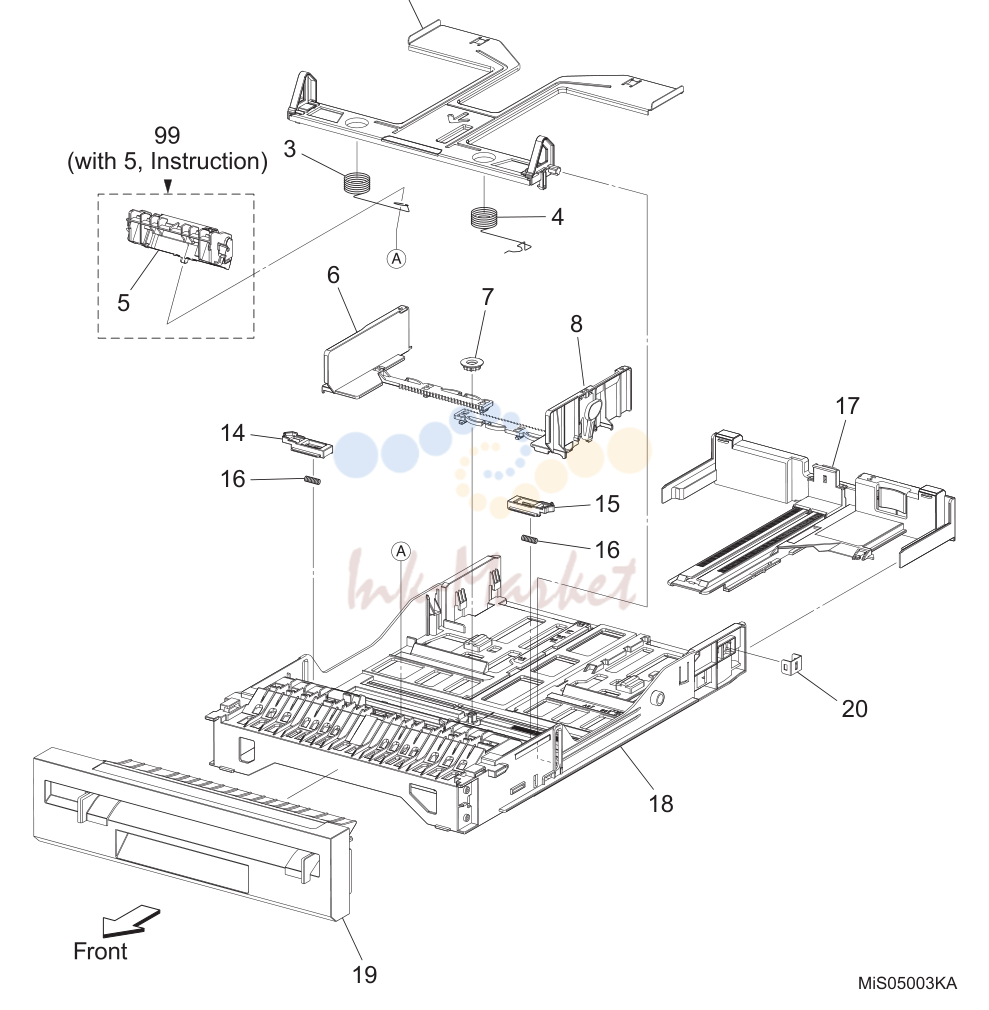

3. Chapter 5 Parts List

№	Артикул	Альт. артикул	Описание
1			CASSETTE ASSY 250 (with 19,21)
2			PLATE ASSY BOTTOM
3			SPRING N/F L
4			SPRING N/F R
5			HOLDER ASSY SEPARATOR
6			GUIDE SIDE L
7			GEAR PINION
8			GUIDE SIDE ASSY R
14			LATCH BOTTOM L
15			LATCH BOTTOM R
16			SPRING LATCH B
17			TRAY ASSY EXTENSION
18			HOUSING CASSETTE
19			HANDLE ASSY CST
20			PLATE LOCK KST CST
21			TRAY ASSY CST 250 (with 2-8,14-18,20)
99			KIT HOLDER ASSY SEPARATOR (with 5, Instruction)

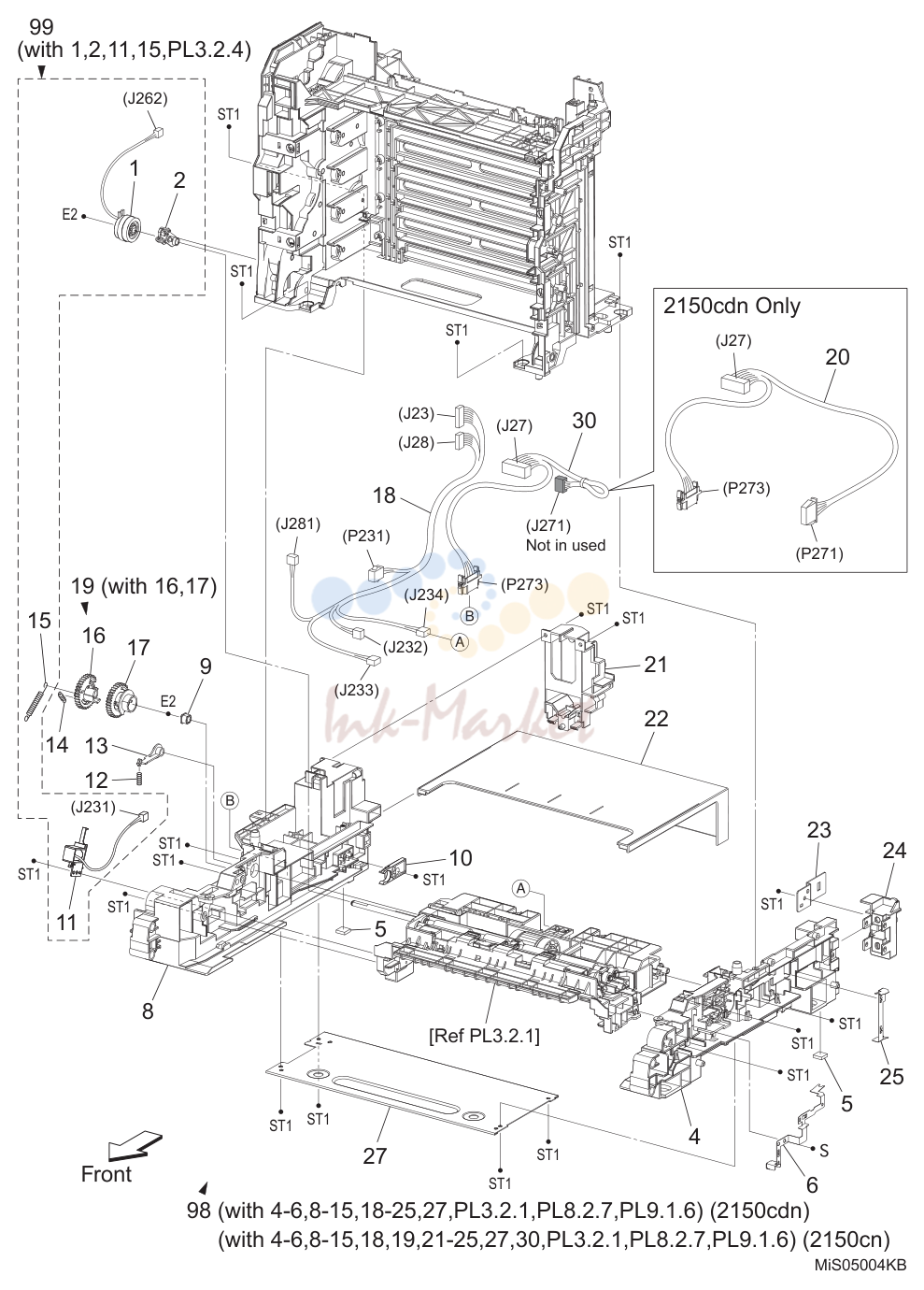

4. Chapter 5 Parts List

№	Артикул	Альт. артикул	Описание
1			CLUTCH ASSY DRV
2			BEARING REGI
4			CHASSIS FDR R
5			FOOT ASSY
6			PLATE EARTH PH
8			CHASSIS FDR L
9			BEARING
10			STOPPER CST
11			SOLENOID FEED MSI
12			SPRING LEVER
13			LEVER FEED
14			SPRING FEED IN
15			SPRING FEED OUT
16			GEAR FEED OUT
17			GEAR FEED IN
18			HARN ASSY L SIDE (J23,J28-P231,J232,J233,J234,J281)
19			GEAR ASSY FEED (with 16,17)
20			HARN ASSY OPTION (J27-P271,P273) (2150cdn Only)
21			BRACKET GFI
22			COVER CST
23			PLATE LOCK KST FDR
24			BRACKET FDR R
25			PLATE EARTH FDR R
27			PLATE TIE
30			HARNESS ASSY OPTION D-LESS MG SFP (J27-J271,P273) (2150cn Only)
98			FEEDER ASSY MG SFP DN (with 4-6,8-15,18-25,27,PL3.2.1,PL8.2.7,PL9.1.6)
99			KIT FEED ROLL/SOL/CLUTCH (with 1,2,11,15,PL3.2.4)

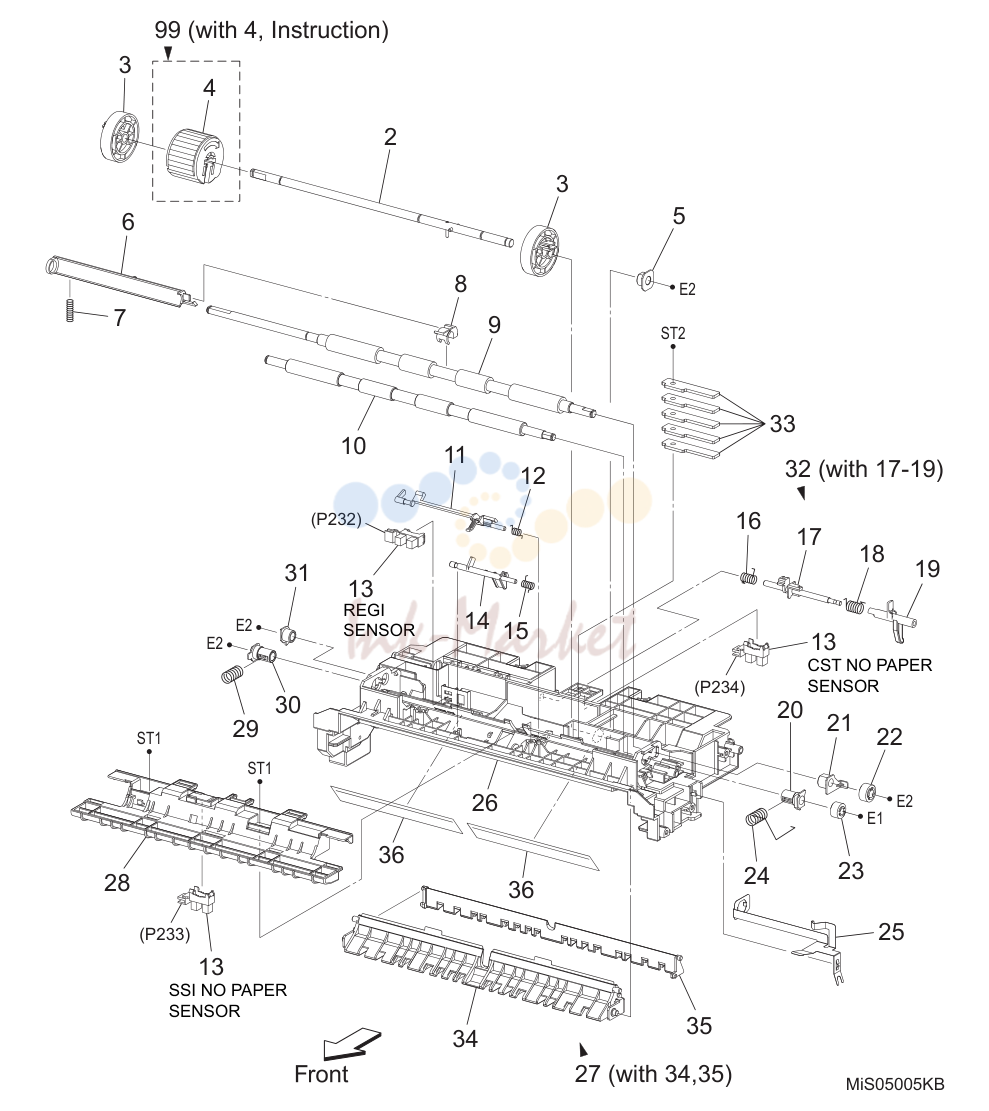

5. Chapter 5 Parts List

№	Артикул	Альт. артикул	Описание
1			CHUTE ASSY FDR REGI (with 2-16,20-33, 36)
2			SHAFT ASSY FEED
3			ROLL CORE MSI
4			ROLL ASSY FEED
5			BEARING EARTH
6			ACTUATOR REGI OUT
7			SPRING REGI OUT
8			ACTUATOR REGI ROLL M
9			ROLL ASSY REGI
10			ROLL REGI METAL
11			ACTUATOR REGI IN
12			SPRING ACT REGI
13			SENSOR PHOTO
14			ACTUATOR SSI
15			SPRING ACT SSI
16			SPRING STP
17			STOPPER ACT
18			SPRING ACT NP
19			ACTUATOR NO PAPER
20			BEARING M EARTH
21			BEARING EARTH REGI
22			GEAR REGI R
23			GEAR REGI M
24			SPRING REGI R MG
25			PLATE EARTH REGI
26			CHUTE UP
27			CHUTE ASSY LOW (with 34,35)
28			BRACKET SNS
29			SPRING REGI L MG
30			BEARING M
31			BEARING R
32			ACTUATOR ASSY NO PAPER (with 17-19)
33			PLATE WEIGHT
34			CHUTE ASSY LOW SSI
35			CHUTE LOW CST
36			FILM CHUTE UP
99			KIT ROLL ASSY FEED (with 4, Instruction)

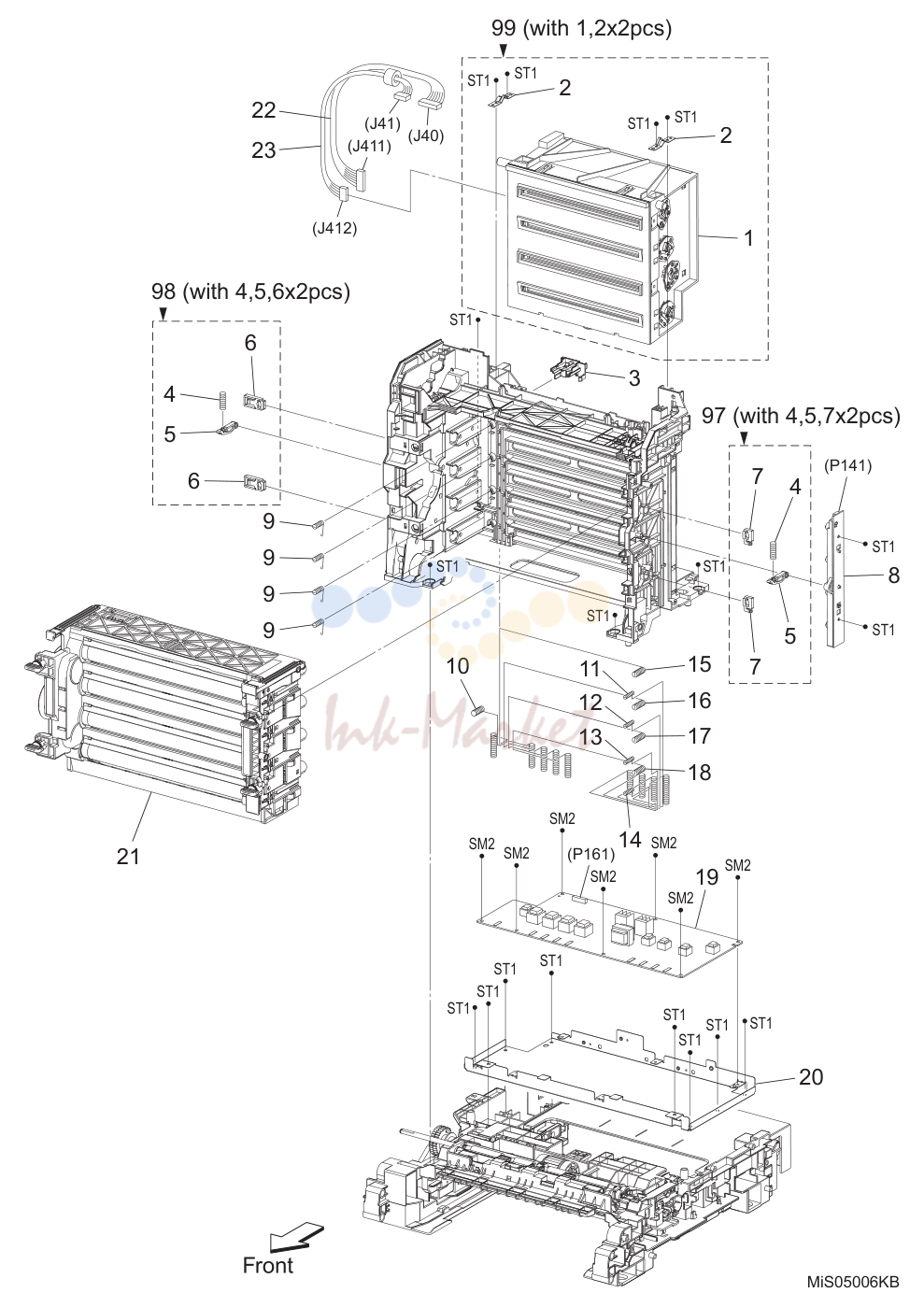

6. Chapter 5 Parts List

№	Артикул	Альт. артикул	Описание
1			ROS ASSY
2			SPRING ROS
3			HOLDER CRUM
4			SPRING PHD
5			LEVER PHD
6			BLOCK STOPPER PHD D
7			BLOCK STOPPER PHD AD
8			LED ASSY ERASE
9			SPRING TRACKING
10			SPRING CF
11			SPRING TR4
12			SPRING TR3
13			SPRING TR2
14			SPRING TR1
15			SPRING D4
16			SPRING D3
17			SPRING D2
18			SPRING D1
19			PWBA HVPS
20			FRAME HVPS
21			PHD ASSY
22			HARN ASSY ROS RE (J40-J411)
23			HARN ASSY ROS VIDEO (J41-J412)
97			KIT BLOCK PHD RIGHT (with 4,5,7 x 2pcs)
98			KIT BLOCK PHD LEFT (with 4,5,6 x 2pcs)
99			KIT ROS (with 1,2 x 2pcs)

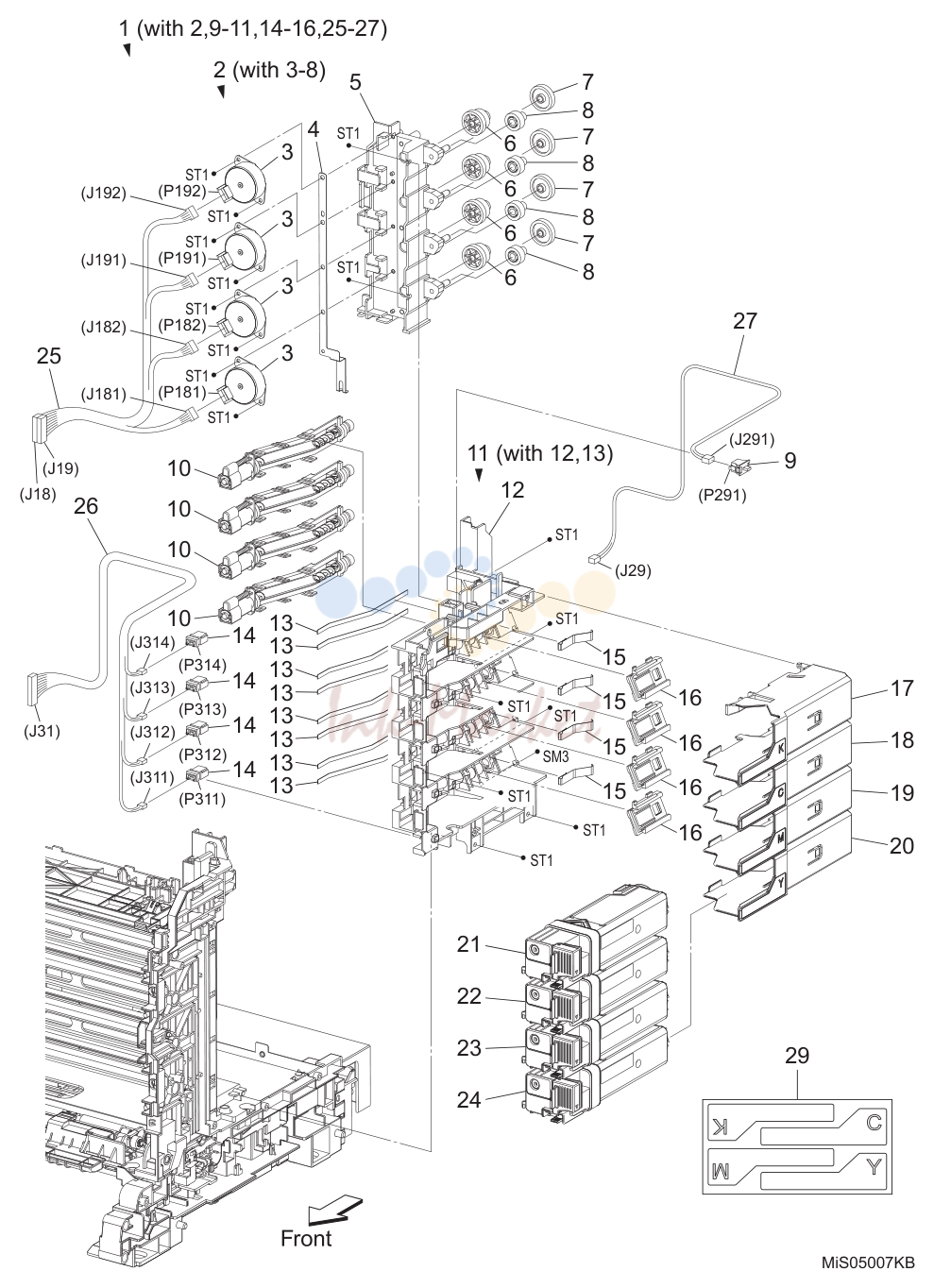

7. Chapter 5 Parts List

№	Артикул	Альт. артикул	Описание
1			DISPENSER ASSY (with 2,9-11,14-16,25-27)
2			FRAME ASSY MOT (with 3-8)
3			MOTOR ASSY DISP
4			CONDUCTOR MOTOR
5			FRAME MOTOR
6			GEAR IDLER
7			GEAR IDLER AUG
8			GEAR IDLER AGI
9			SWITCH
10			HOUSING ASSY AUGER
11			FRAME ASSY DISP (with 12,13)
12			FRAME DISP
13			SEAL DISP AUG
14			CONNECTOR CRUM
15			SPRING DISP
16			JOINT ASSY DISP
17			HOLDER ASSY TCRU K
18			HOLDER ASSY TCRU C
19			HOLDER ASSY TCRU M
20			HOLDER ASSY TCRU Y
21			TONER CARTRIDGE (K)
22			TONER CARTRIDGE (C)
23			TONER CARTRIDGE (M)
24			TONER CARTRIDGE (Y)
25			HARN ASSY TNR MOT (J18,J19-J181,J182,J191,J192)
26			HARN ASSY TONER CRUM (J31-J311,J312,J313,J314)
27			HARN ASSY SIDE SW (J29-J291)
29			LABEL HOLDER

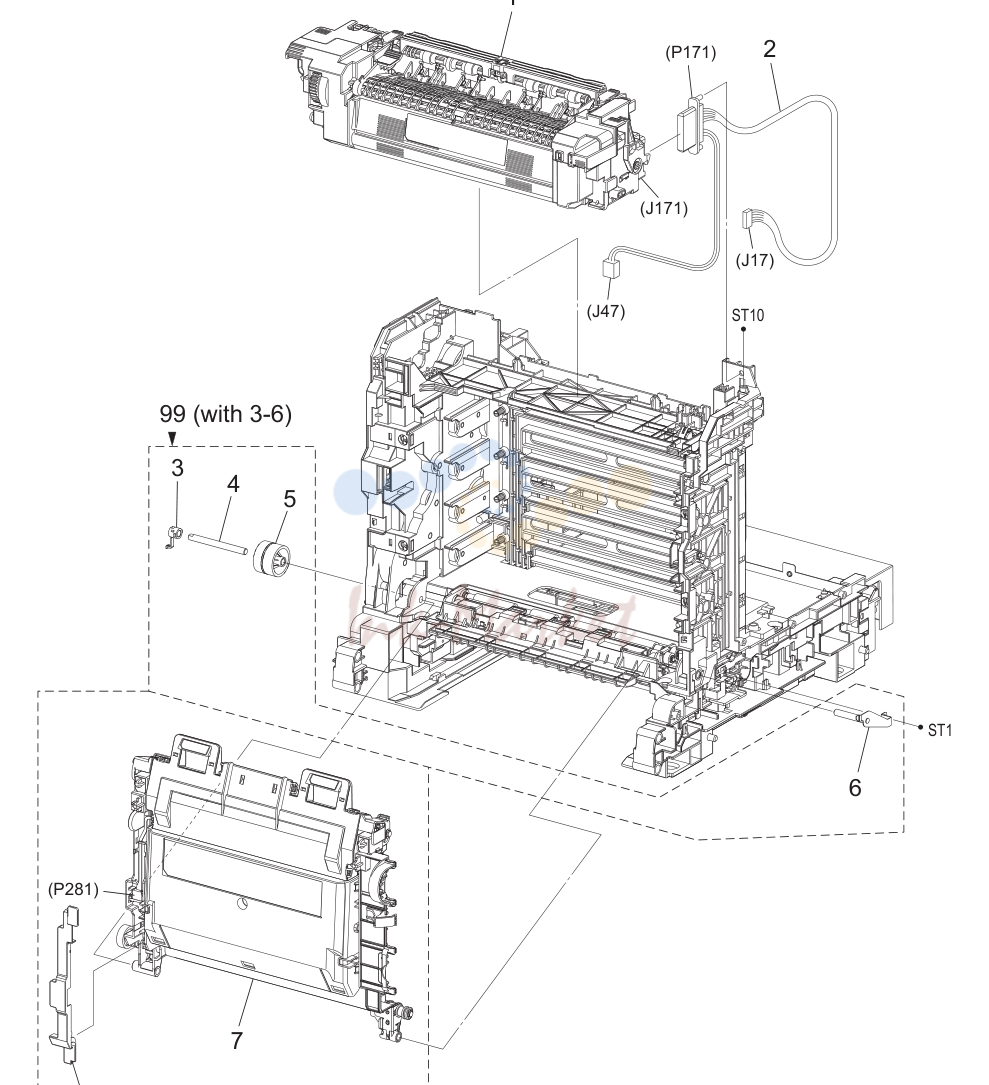

8. Chapter 5 Parts List

№	Артикул	Альт. артикул	Описание
1			FUSER ASSY
2			HARNESS ASSY FUSER MG SFP (J17,47-P171)
3			STOPPER PIVOT
4			PIVOT TRANS L
5			GEAR T4
6			SHAFT ASSY PIVOT
7			TRANSFER ASSY
8			COVER HARNESS
98			KIT TRANSFER ASSY (with 3-8)
99			KIT PIVOT (with 3-6)

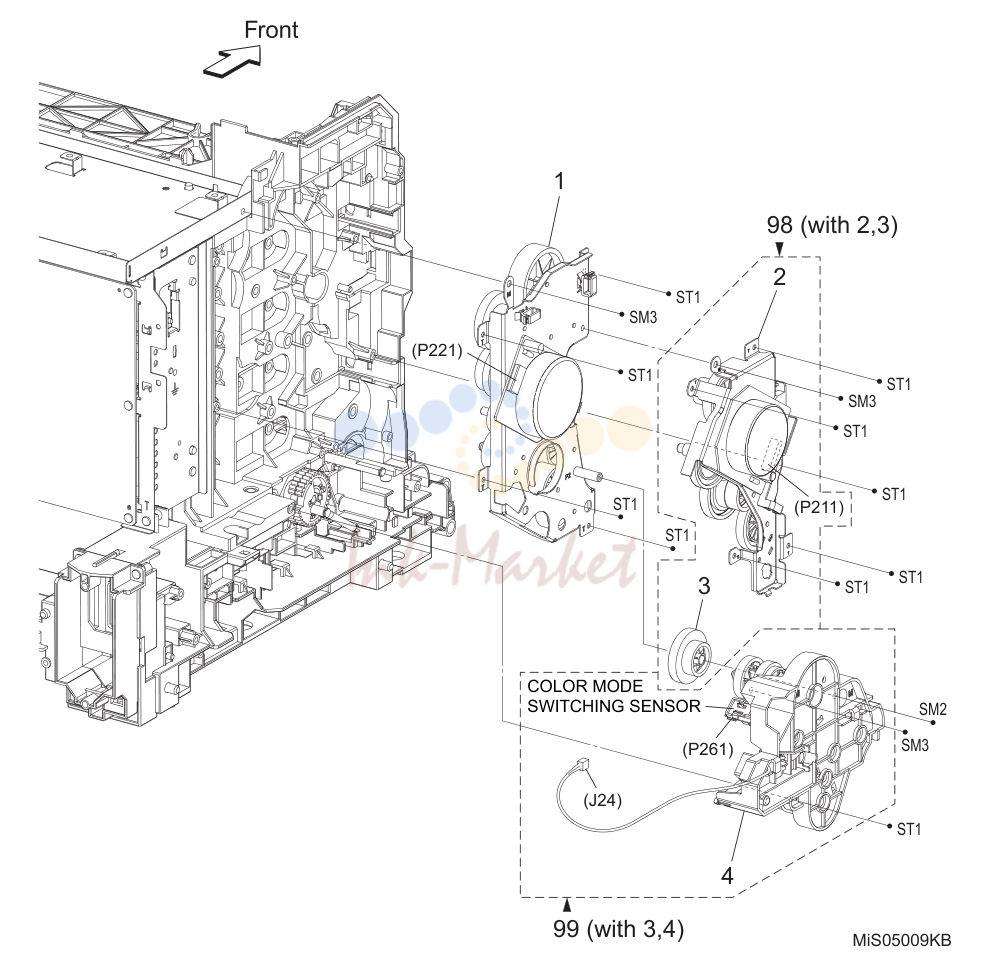

9. Chapter 5 Parts List

№	Артикул	Альт. артикул	Описание
1			DRIVE ASSY SUB
2			DRIVE ASSY MAIN
3			GEAR P2
4			DRIVE ASSY PH
98			KIT DRIVE ASSY MAIN (with 2,3)
99			KIT DRIVE ASSY PH (with 3,4)

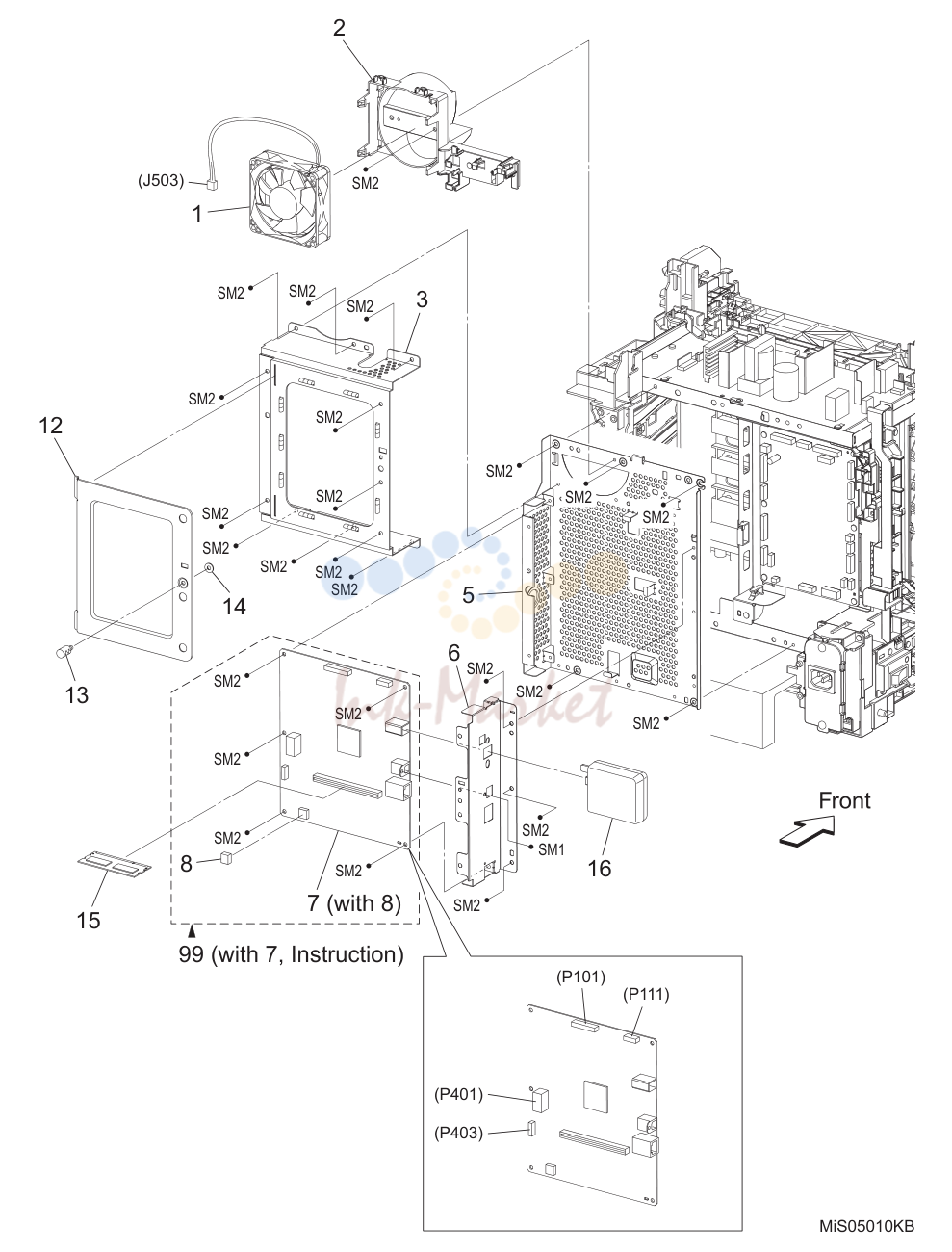

10. Chapter 5 Parts List

№	Артикул	Альт. артикул	Описание
1			FAN
2			DUCT FAN
3			SHIELD ASSY ESS
5			FRAME ESS
6			PLATE IF M
7			PWBA ESS SFP (with 8)
8			NVM ROM
12			PLATE ESS
13			SCREW KNURLING
14			WASHER
15			MEMORY CARD (OPTION)
16			WIRELESS ADAPTER (OPTION)
99			KIT PWBA ESS SFP (with 7, Instruction)

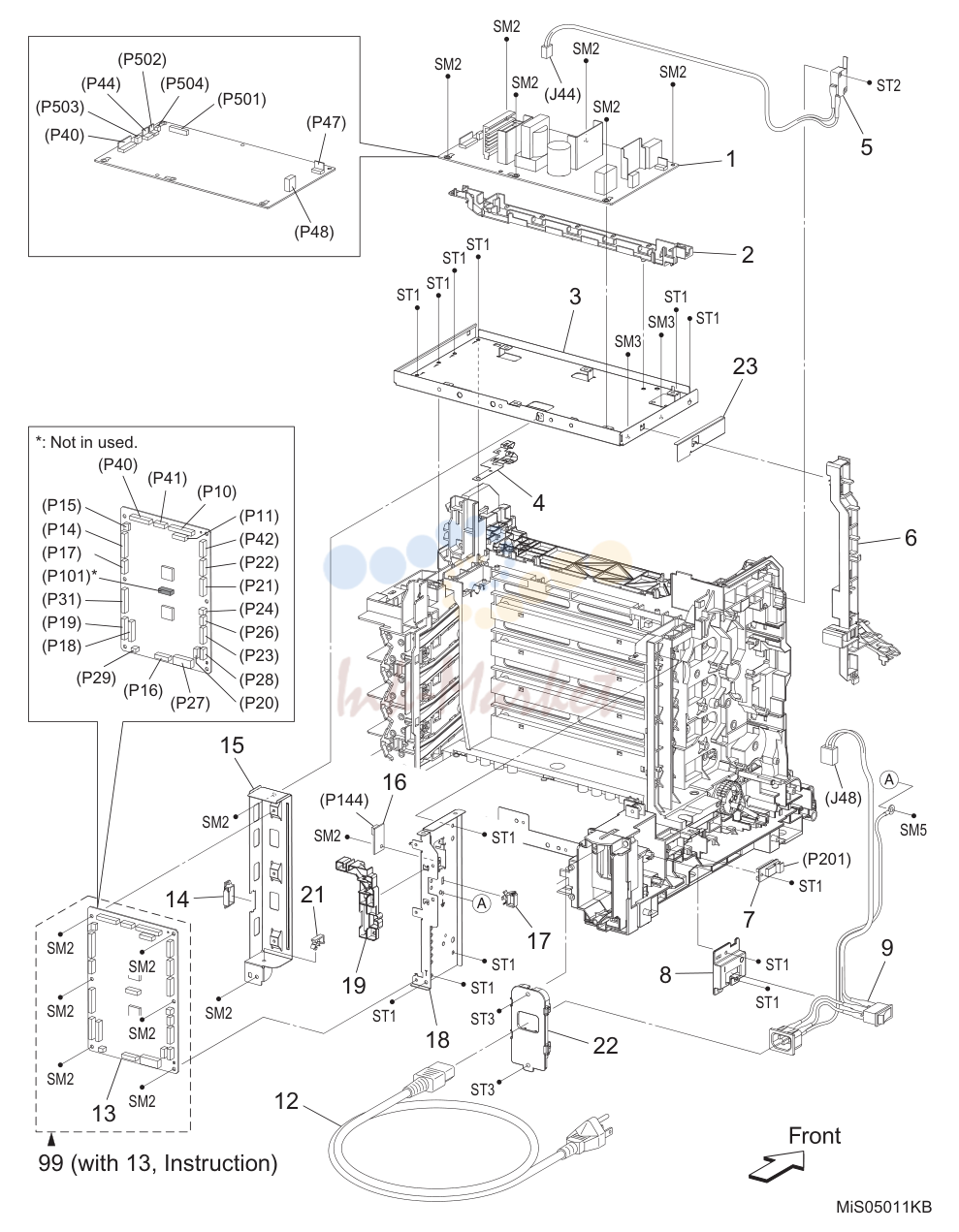

11. Chapter 5 Parts List

№	Артикул	Альт. артикул	Описание
1			PWBA LVPS
2			GUIDE HARNESS FSR
3			FRAME ASSY LVPS
4			PLATE EARTH
5			HARN ASSY INTERLOCK (SW-J44)
6			GUIDE HARNESS AC
7			SENSOR HUM
8			BRACKET SW
9			SWITCH ASSY INLET MG SFP (AC INLET-MAIN SW,J48)
12			POWER CORD
13			PWBA MCU
14			EDGING SADDLE
15			BRACKET MCU R
16			PWBA EEPROM (XPRO)
17			CLAMP
18			BRACKET MCU L
19			GUIDE HARNESS MCU
21			CLAMP MST-10V0
22			COVER INLET
23			GUIDE HARNESS FILM
99			KIT PWBA MCU (with 13, Instruction)

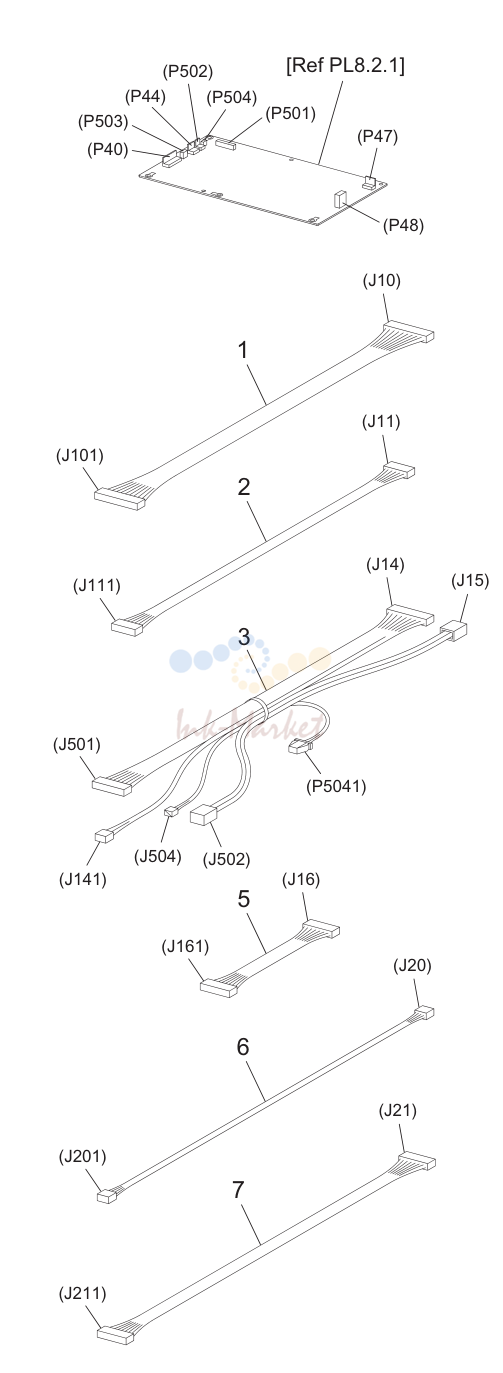

12. Chapter 5 Parts List

№	Артикул	Альт. артикул	Описание
1			HARNESS ASSY ESS MG SFP (J10-J101)
2			HARN ASSY ESS VIDEO (J11-J111)
3			HARNESS ASSY LVPS MAIN MG SFP (J14,J15,P5041-J141,J501,J502,J504)
5			HARN ASSY HVPS (J16-J161)
6			HARN ASSY HUM (J20-J201)
7			HARNESS ASSY MAIN MOT MG SFP (J21-J211)
8			HARNESS ASSY SUB MOT MG SFP (J22-J221)
9			HARN ASSY KSNR REGCL (J26-J261,P262)
10			HARN ASSY ESS POWER (J40-J401)
11			HARN ASSY PHD XPRO (J42-J144,P422)
12			HARNESS ASSY B (J29-P5301)

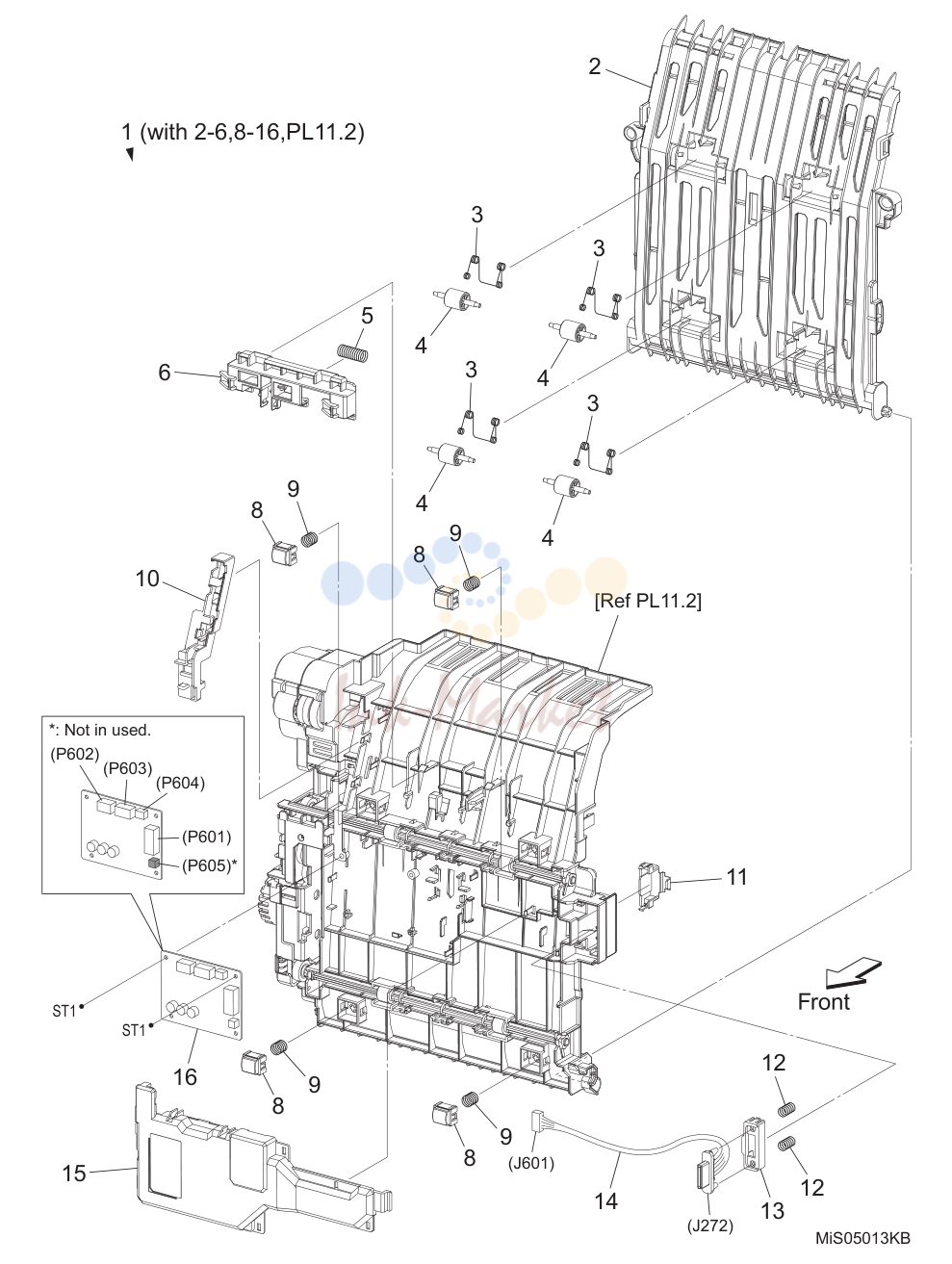

13. Chapter 5 Parts List

№	Артикул	Альт. артикул	Описание
1			FEEDER ASSY DUP SFP STD (with 2-6,8-16)
2			CHUTE DUP IN
3			SPRING PINCH DUP
4			ROLL PINCH DUP
5			SPRING LATCH DUP
6			LATCH DUP
8			HOLDER CHUTE DUP
9			SPRING CHUTE DUP
10			HOLDER HARNESS DUP
11			COVER CONNECT DUP
12			SPRING CONNECT DUP
13			HOLDER CONNECT DUP
14			HARNESS ASSY DUP (J272-J601)
15			COVER PWBA DUP
16			PWBA DUP

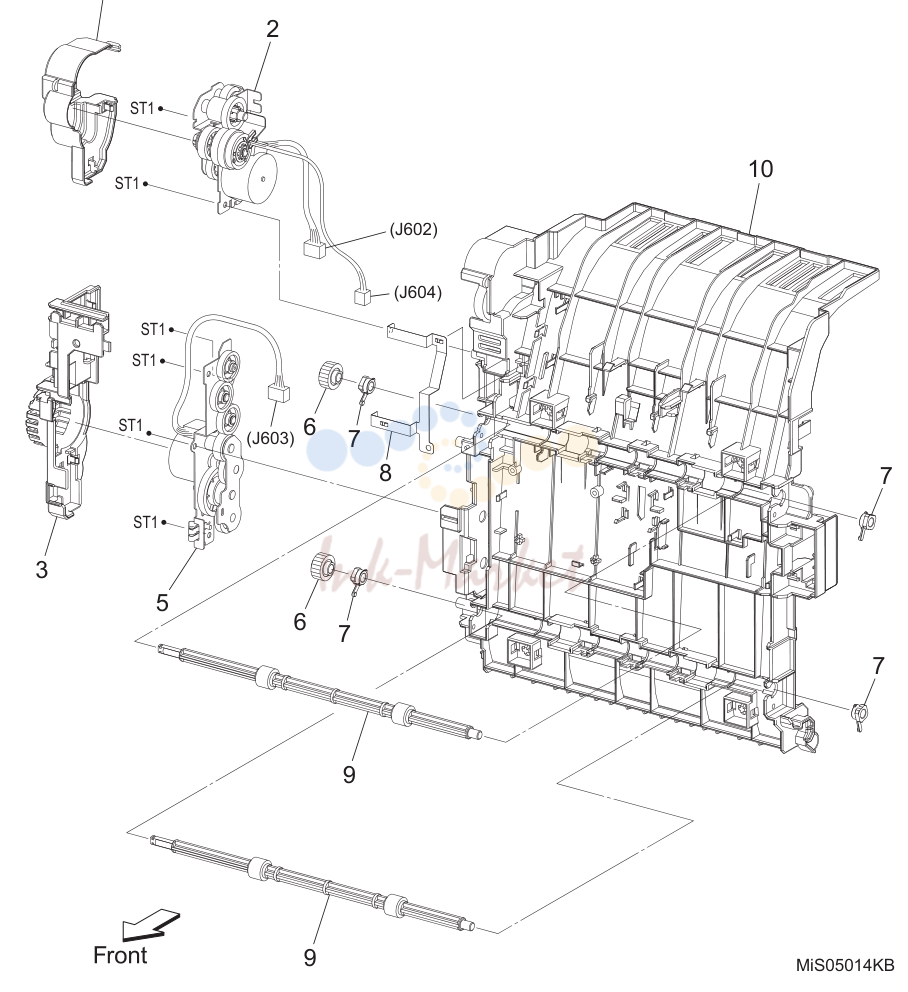

14. Chapter 5 Parts List

№	Артикул	Альт. артикул	Описание
1			COVER DRIVE EXIT
2			DRIVE ASSY EXIT
3			COVER DRIVE DUP
5			DRIVE ASSY DUP
6			GEAR ROLL DUP
7			BEARING DUP
8			PLATE EARTH PWBA
9			ROLLER ASSY DUP
10			CHUTE DUP FRAME

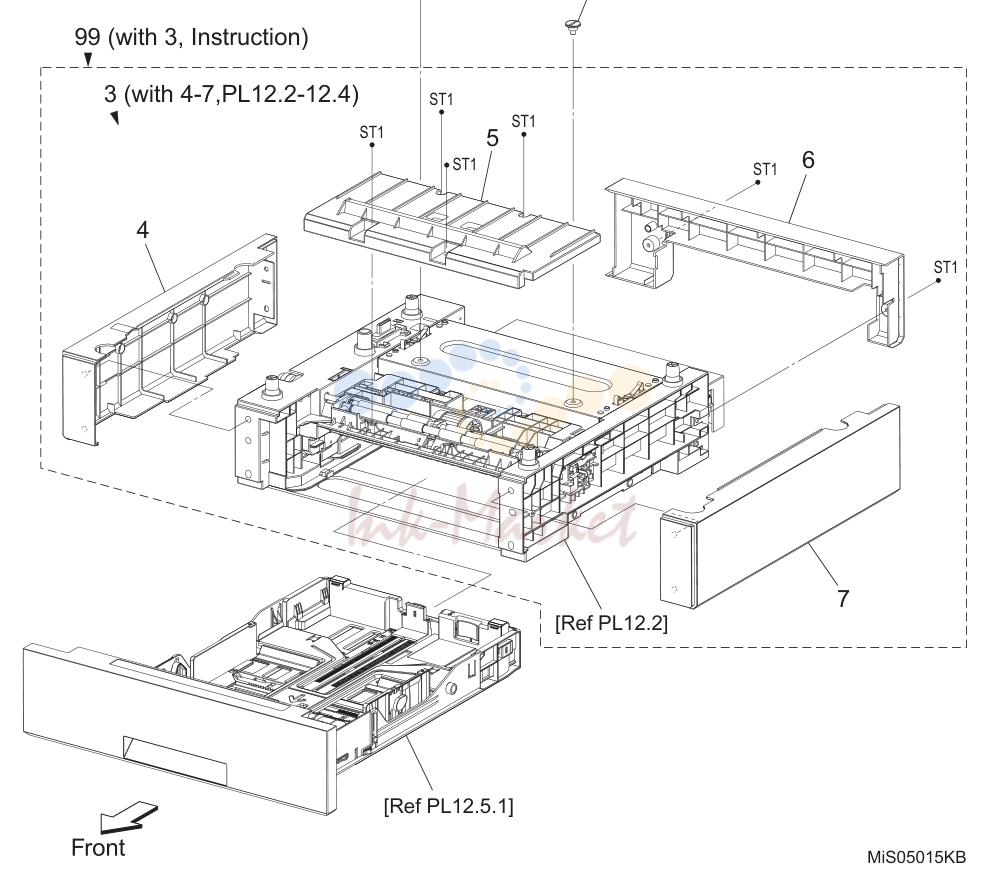

15. Chapter 5 Parts List

№	Артикул	Альт. артикул	Описание
1			250 OPTION FEEDER (with 2,3,PL12.5.1)
2			SCREW JOINT
3			FEEDER ASSY OPT (with 4-7,PL12.2-12.4)
4			COVER SIDE L OPT
5			COVER CHUTE
6			COVER REAR OPT
7			COVER SIDE R OPT
99			KIT FEEDER ASSY OPT (with 3, Instruction)

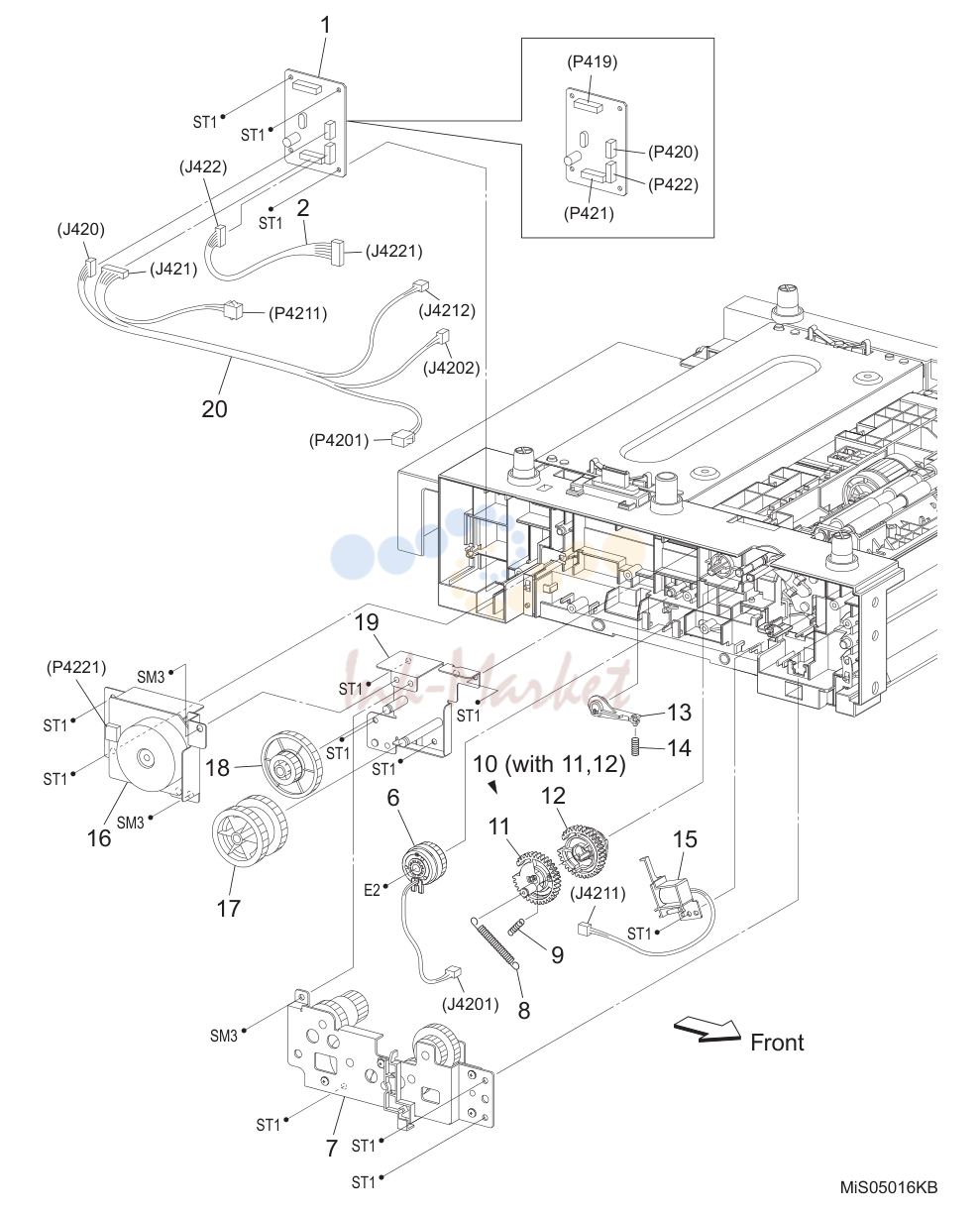

16. Chapter 5 Parts List

№	Артикул	Альт. артикул	Описание
1			PWBA FEED H
2			HARNESS ASSY TRAY MOT (J422-J4221)
6			CLUTCH ASSY DRV [Same as PL3.1.1]
7			GEAR ASSY IDLER
8			SPRING FEED OUT [Same as PL3.1.15]
9			SPRING FEED IN [Same as PL3.1.14]
10			GEAR ASSY FEED (with 11,12) [Same as PL3.1.19]
11			GEAR FEED OUT [Same as PL3.1.16]
12			GEAR FEED IN [Same as PL3.1.17]
13			LEVER FEED [Same as PL3.1.13]
14			SPRING LEVER [Same as PL3.1.12]
15			SOLENOID FEED MSI [Same as PL3.1.11]
16			MOTOR ASSY SUB
17			GEAR IDLE 40Z
18			GEAR IDLE 86-20Z
19			PLATE ASSY IDLE
20			HARNESS ASSY TRAY COMP (J420,J421-P4201,J4202,P4211,J4212)

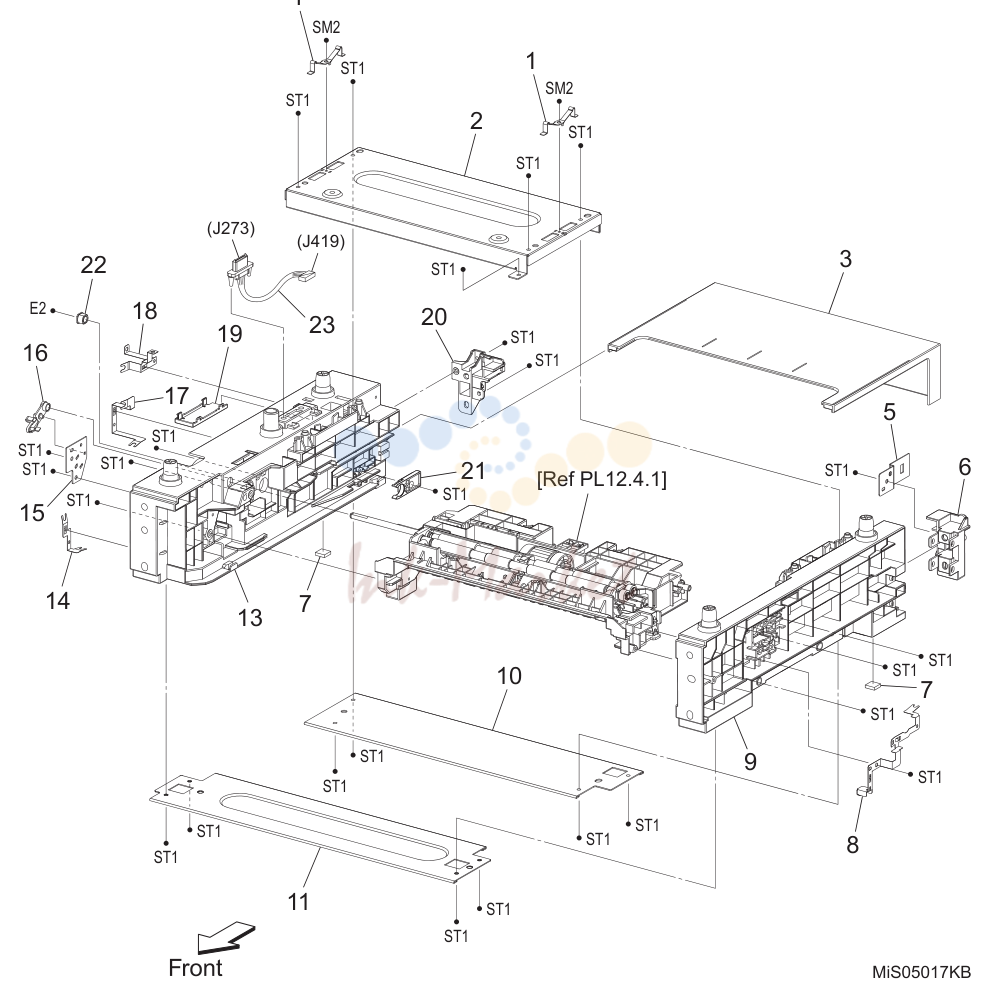

17. Chapter 5 Parts List

№	Артикул	Альт. артикул	Описание
1			SPRING EARTH OPT
2			PLATE REAR TOP
3			COVER CST [Same as PL3.1.22]
5			PLATE LOCK KST FDR [Same as PL3.1.23]
6			BRACKET FDR R [Same as PL3.1.24]
7			FOOT ASSY [Same as PL3.1.5]
8			PLATE EARTH PH [Same as PL3.1.6]
9			CHASSIS FDR R OPT
10			PLATE REAR BOTTOM
11			PLATE FRONT BOTTOM
13			CHASSIS FDR L OPT
14			PLATE EARTH FRONT BOTTOM
15			BRACKET SUP REGI
16			BEARING REGI [Same as PL3.1.2]
17			PLATE EARTH REAR BOTTOM
18			PLATE EARTH REAR TOP
19			COVER HARNESS DRAWER
20			BRACKET CVR REAR
21			STOPPER CST [Same as PL3.1.10]
22			BEARING [Same as PL3.1.9]
23			HARNESS ASSY TRAY (J273-J419)

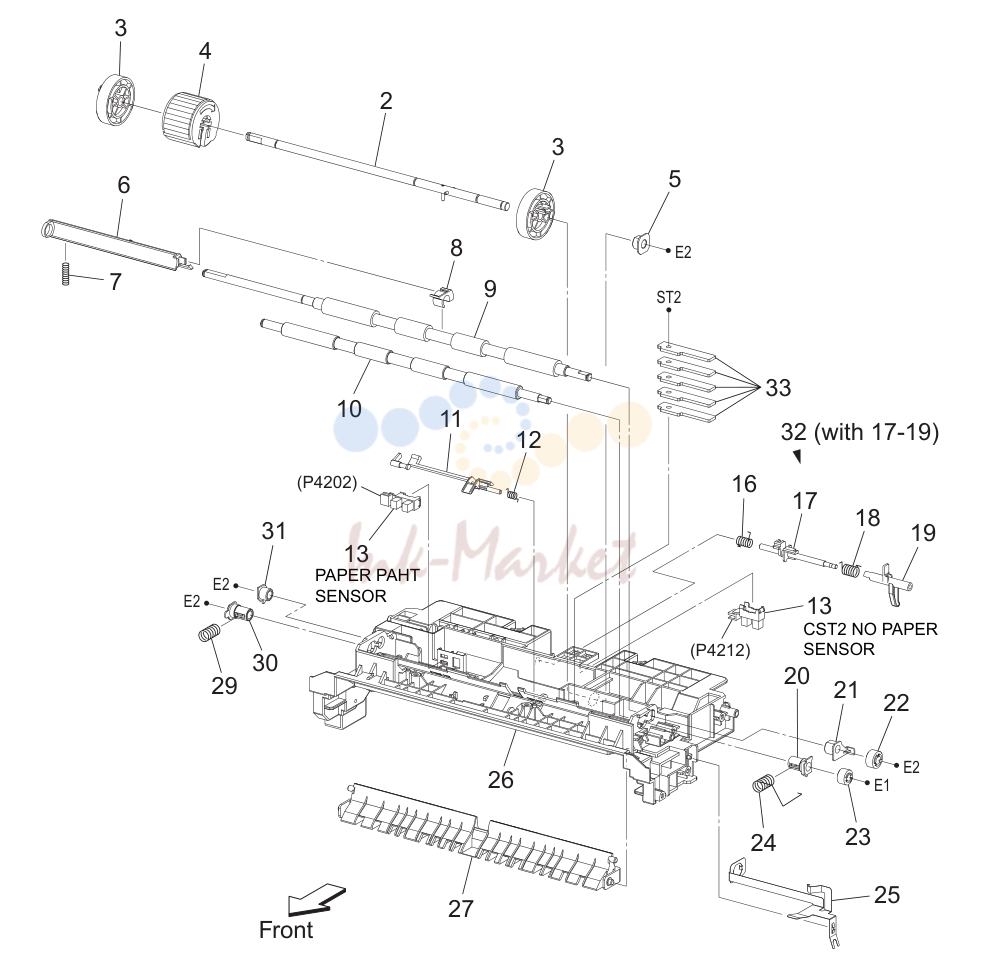

18. Chapter 5 Parts List

№	Артикул	Альт. артикул	Описание
1			CHUTE ASSY TURN (with 2-13,16,20-27,29-33)
2			SHAFT ASSY FEED [Same as PL3.2.2]
3			ROLL CORE MSI [Same as PL3.2.3]
4			ROLL ASSY FEED [Same as PL3.2.4]
5			BEARING EARTH [Same as PL3.2.5]
6			ACTUATOR REGI OUT [Same as PL3.2.6]
7			SPRING REGI OUT [Same as PL3.2.7]
8			ACTUATOR REGI ROLL
9			ROLL ASSY REGI
10			ROLL REGI METAL [Same as PL3.2.10]
11			ACTUATOR REGI IN
12			SPRING ACT REGI [Same as PL3.2.12]
13			SENSOR PHOTO [Same as PL3.2.13]
16			SPRING STP [Same as PL3.2.16]
17			STOPPER ACT [Same as PL3.2.17]
18			SPRING ACT NP [Same as PL3.2.18]
19			ACTUATOR NO PAPER [Same as PL3.2.19]
20			BEARING M EARTH [Same as PL3.2.20]
21			BEARING EARTH REGI [Same as PL3.2.21]
22			GEAR REGI R [Same as PL3.2.22]
23			GEAR REGI M [Same as PL3.2.23]
24			SPRING REGI R M
25			PLATE EARTH REGI [Same as PL3.2.25]
26			CHUTE UP [Same as PL3.2.26]
27			CHUTE LOW
29			SPRING REGI L M
30			BEARING M [Same as PL3.2.30]
31			BEARING R [Same as PL3.2.31]
32			ACTUATOR ASSY NO PAPER (with 17-19) [Same as PL3.2.32]
33			PLATE WEIGHT [Same as PL3.2.33]

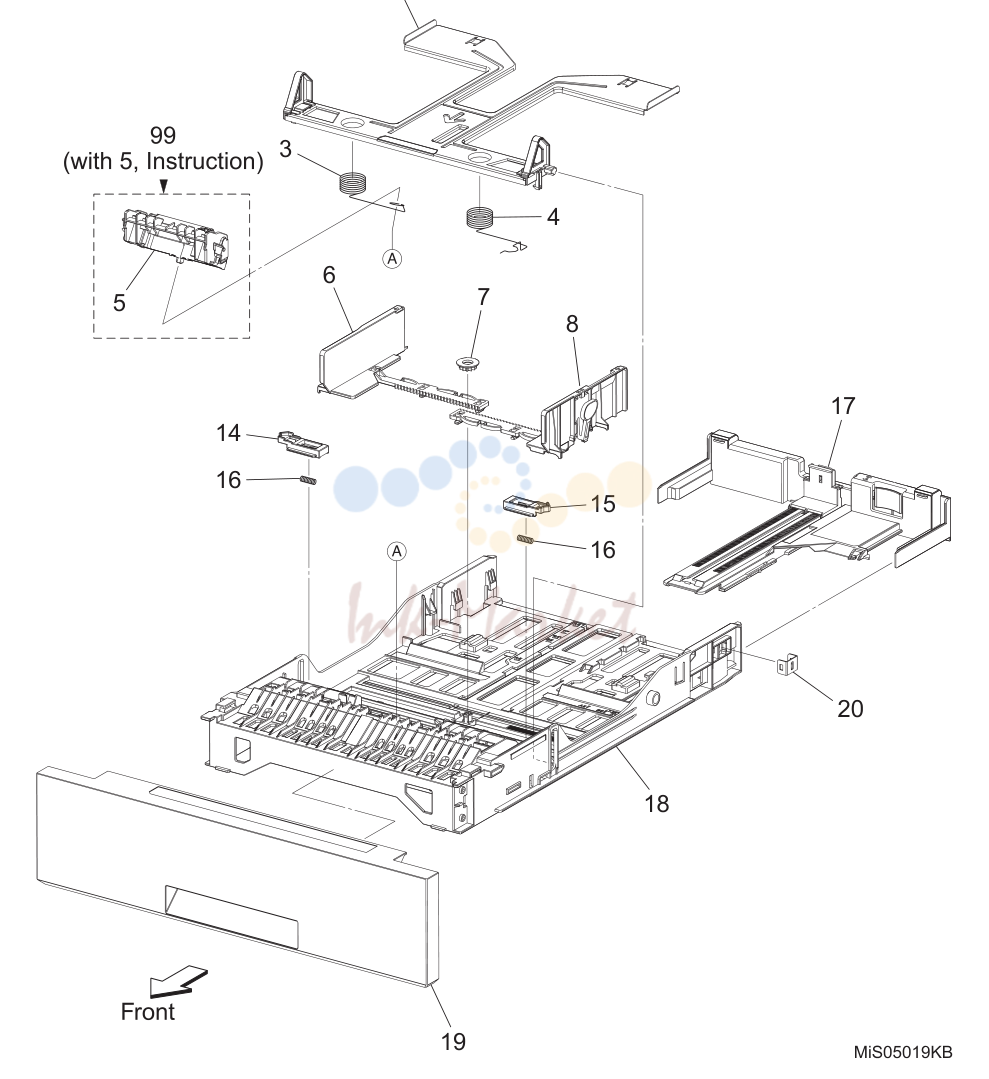

19. Chapter 5 Parts List

№	Артикул	Альт. артикул	Описание
1			CASSETTE ASSY 250 OPT (with 19,21)
2			PLATE ASSY BOTTOM [Same as PL2.1.2]
3			SPRING N/F L [Same as PL2.1.3]
4			SPRING N/F R [Same as PL2.1.4]
5			HOLDER ASSY SEPARATOR [Same as PL2.1.5]
6			GUIDE SIDE L [Same as PL2.1.6]
7			GEAR PINION [Same as PL2.1.7]
8			GUIDE SIDE ASSY R [Same as PL2.1.8]
14			LATCH BOTTOM L [Same as PL2.1.14]
15			LATCH BOTTOM R [Same as PL2.1.15]
16			SPRING LATCH B [Same as PL2.1.16]
17			TRAY ASSY EXTENSION [Same as PL2.1.17]
18			HOUSING CASSETTE 250 [Same as PL2.1.18]
19			HANDLE ASSY CST OPT
20			PLATE LOCK KST CST [Same as PL2.1.20]
21			TRAY ASSY CST 250 (with 2-8,14-18,20) [Same as PL2.1.21]
99			KIT HOLDER ASSY SEPARATOR (with 5, Instruction)
