1. Chapter 5 Parts Lists
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | 1-15 JN66801-0 Unit, Power Supply | ||
| 2 | 2-13 JN09802-0 Unit, Head | ||
| 3 | 8-9 JN48704-0 SA, Sensor U 1 Fixed type | ||
| 4 | 8-24 JN48705-0 SA, Sensor Bottom 1 Adjustable type | ||
| 5 | 9-1 JN28801-0 Unit, Roller Platen | ||
| 6 | 9-39 JN25801-0 Unit, Motor | ||
| 7 | 9-7 JN48701-0 SA, Sensor U 1 Fixed type | ||
| 8 | 9-18 JN48702-0 SA, Sensor Bottom 1 Fixed type | ||
| 9 | 14-2 JN66701-0 SA, Main PCB (200) |

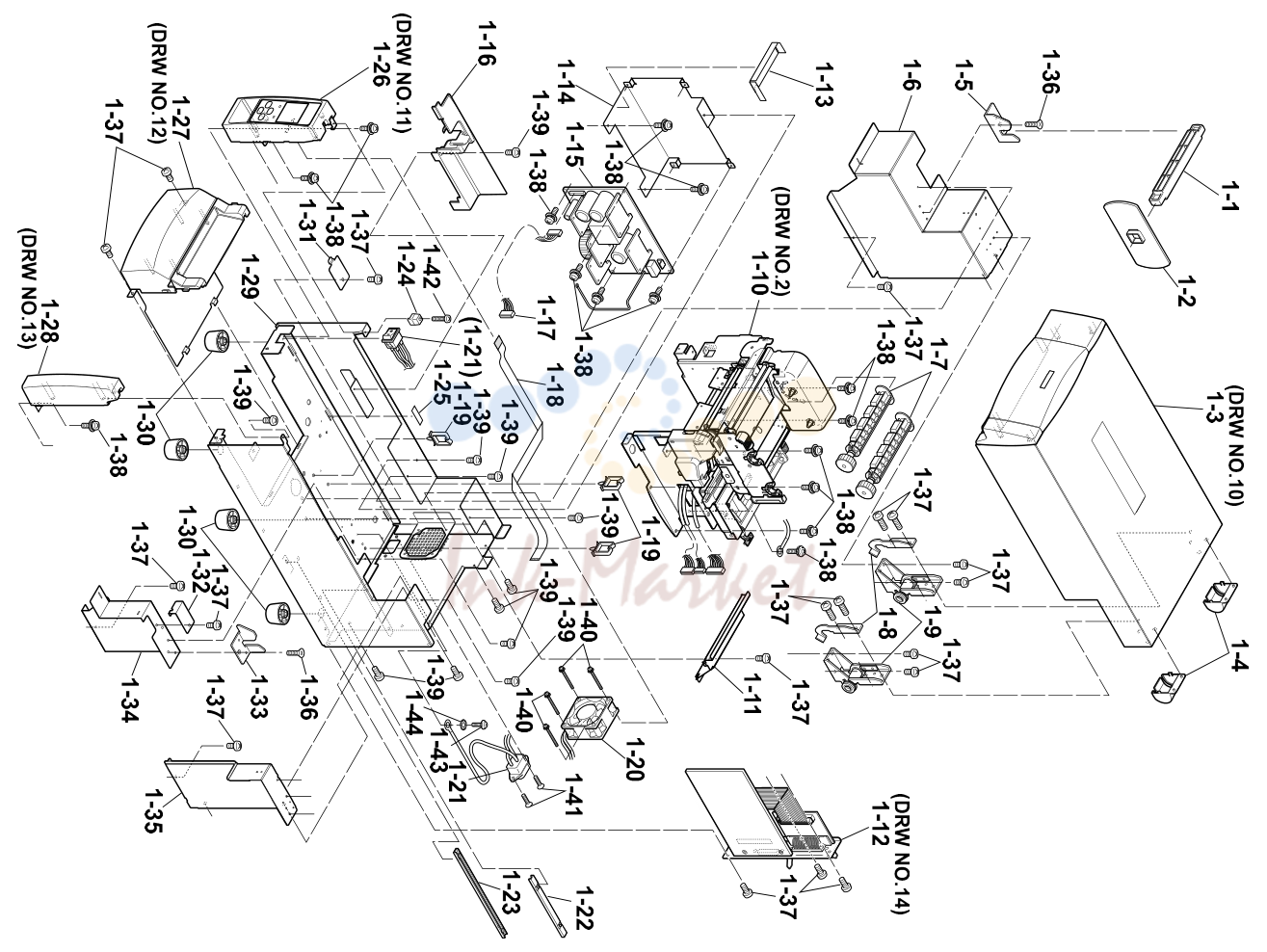

2. DRAWING
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1-1 | Roll Holder JE99090-0 | ||
| 1-2 | Flange, Paper Wide JM79201-0 | ||
| 1-3 | Unit, Top Cover ---- 1 Ref: See Drawing No. | ||
| 1-4 | Cover, Hinge JN56209-0 | ||
| 1-5 | Holder, Paper Shaft Left JN56116-0 | ||
| 1-6 | SA, Cover Inner Power JN56704-0 | ||
| 1-7 | SA, Ribbon Holder JM34710-1 | ||
| 1-8 | Stopper, Hinge JN54103-0 | ||
| 1-9 | SA, Hinge JN59905-0 | ||
| 1-10 | Unit, Mechanism JN99801-0 1 Ref: See Drawing No. | ||
| 1-11 | Cover, Inner Paper JN56112-0 | ||
| 1-12 | Unit, PCB - 1 Ref.: See Drawing No. | ||
| 1-13 | Sheet 1, Power Protect JN54910-0 | ||
| 1-14 | Plate, Power JN64101-0 | ||
| 1-15 | Unit, Power Supply JN66801-0 | ||
| 1-16 | Cover, Cable JN56201-0 | ||
| 1-17 | SA, Power Cable JN67706-0 | ||
| 1-18 | Cable, Ope-pane FFC JN67901-0 | ||
| 1-19 | WS-2NS запросить цену → | (Cable, Clamp) JN59903-0 | |
| 1-20 | SA, Fan JN65901-0 | ||
| 1-21 | SA, Power SW Cable JN67709-0 1 Including Inlet | ||
| 1-22 | Rail, Guide U JN54906-0 | ||
| 1-23 | Rail, Guide Base JN54907-0 | ||
| 1-24 | Guide, Top Cover JN54202-0 | ||
| 1-25 | Sheet, Case L JN54106-0 | ||
| 1-26 | SA, Ope-pane JN56705-0 1 Ref.: See Drawing No. | ||
| 1-27 | SA, Front Center JN56708-0 1 Ref.: See Drawing No. | ||
| 1-28 | SA, Front Right JN56707-0 1 Ref.: See Drawing No. | ||
| 1-29 | SA, Case L JN56701-0 | ||
| 1-30 | Leg, Case JN56901-0 | ||
| 1-31 | Plate, Cable Cover JN56113-0 | ||
| 1-32 | Cover, Sensor Adjust JN56115-0 | ||
| 1-33 | Holder, Paper Shaft Right JN56117-0 | ||
| 1-34 | Cover, Inner PCB Front JN56110-0 | ||
| 1-35 | SA, Cover Inner PCB Rear JN56713-0 | ||
| 1-36 | Screw, FH, M3.0x6 E00230-060F | ||
| 1-37 | Screw, BH, M3.0x5 E00530-050F | ||
| 1-38 | Screw, PH (SW+PW), M3.0x5 E04030-050F | ||
| 1-39 | Screw, BH, M3.0x5K E00530-050KF | ||
| 1-40 | Screw, PH (SW+PW), M4.0x30 E00940-300F | ||
| 1-41 | Screw, FH, M3.0x6 E00230-060F | ||
| 1-42 | Screw, PH, M3.0x12 E00130-120F | ||
| 1-43 | Screw, BH (N), M4.0x4 E00540-040WF | ||
| 1-44 | Washer, EXT, T (N), 4 E50740-000WF |

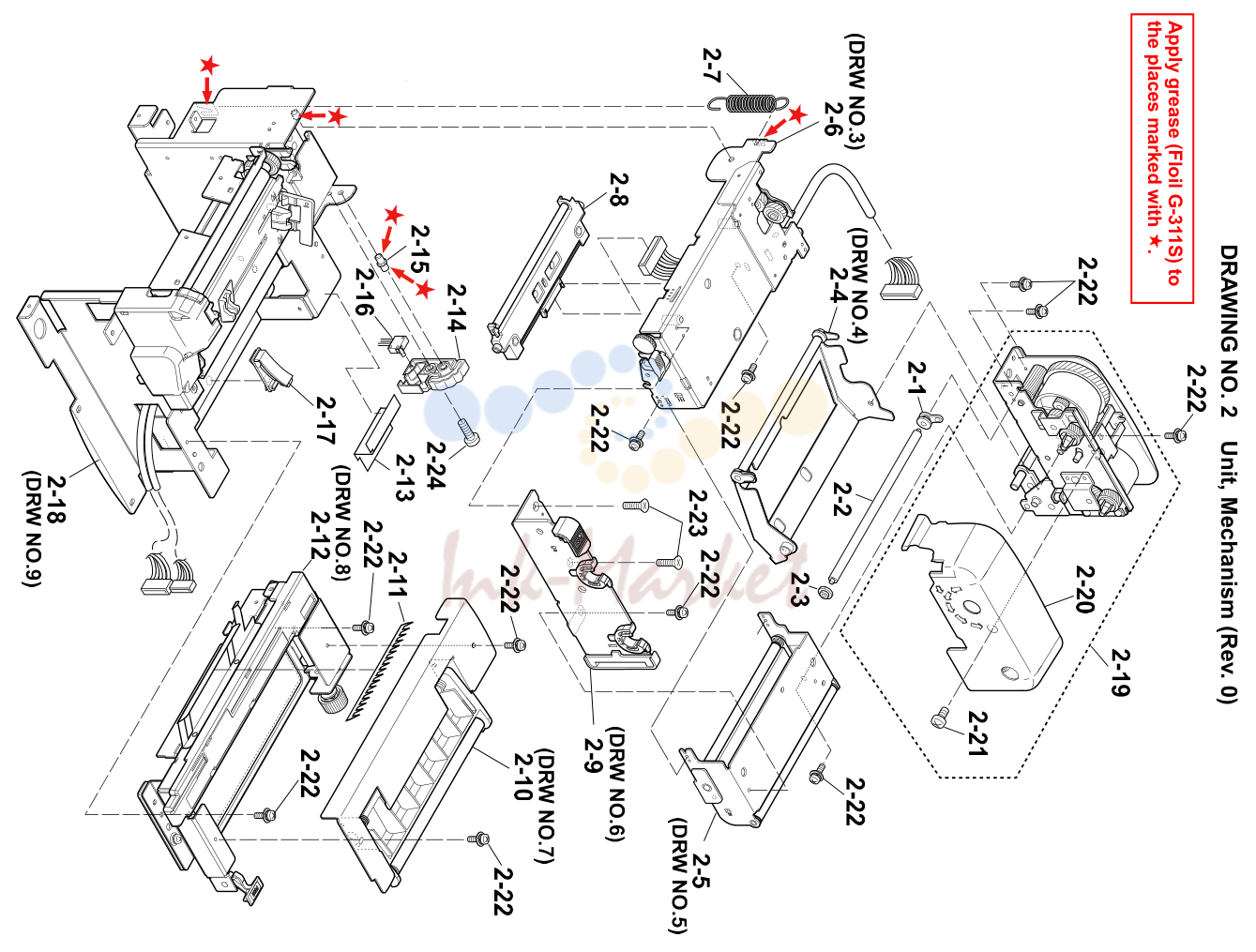

3. places
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 2-1 | Bushing JE99704-0 | ||
| 2-2 | Shaft, Ribbon Guide FF JN32001-0 | ||
| 2-3 | Bushing JE99705-0 | ||
| 2-4 | SA, Front Tension Arm JN34704-0 1 Ref.: See Drawing No. | ||
| 2-5 | Unit, Frame Rear JN44803-0 1 Ref.: See Drawing No. | ||
| 2-6 | Unit, Frame U JN44802-0 1 Ref.: See Drawing No. | ||
| 2-7 | Spring, Head Up JN13601-0 | ||
| 2-8 | Unit, Head JN09802-0 | ||
| 2-9 | SA, Frame Ribbon R JN34703-0 1 Ref.: See Drawing No. | ||
| 2-10 | SA, Base Guide Open JN44712-0 1 Ref.: See Drawing No. | ||
| 2-11 | Ground Brush JE99438-0 | ||
| 2-12 | Unit, Sensor Adjust JN44804-0 1 Ref.: See Drawing No. | ||
| 2-13 | Sheet 2, Power Protect JN54911-0 | ||
| 2-14 | Damper JE99051-0 | ||
| 2-15 | Damper Pin JE99023-0 | ||
| 2-16 | SA, Head Up SW JN68704-0 | ||
| 2-17 | Clamp, Main Cable JN59902-0 | ||
| 2-18 | Unit, Frame ---- 1 Ref.: See Drawing No. | ||
| 2-19 | Unit, Frame Ribbon L ---- 1 Not supplied | ||
| 2-20 | Cover, Ribbon ---- 1 Not supplied | ||
| 2-21 | Screw, PH , M3.0x6 E00130-060F | ||
| 2-22 | Screw, PH (SW+PW), M3.0x5 E04030-050F | ||
| 2-23 | Screw, FT, M3.0x6 E00230-060F | ||
| 2-24 | Screw, PH, M4x6 E00140-060F |

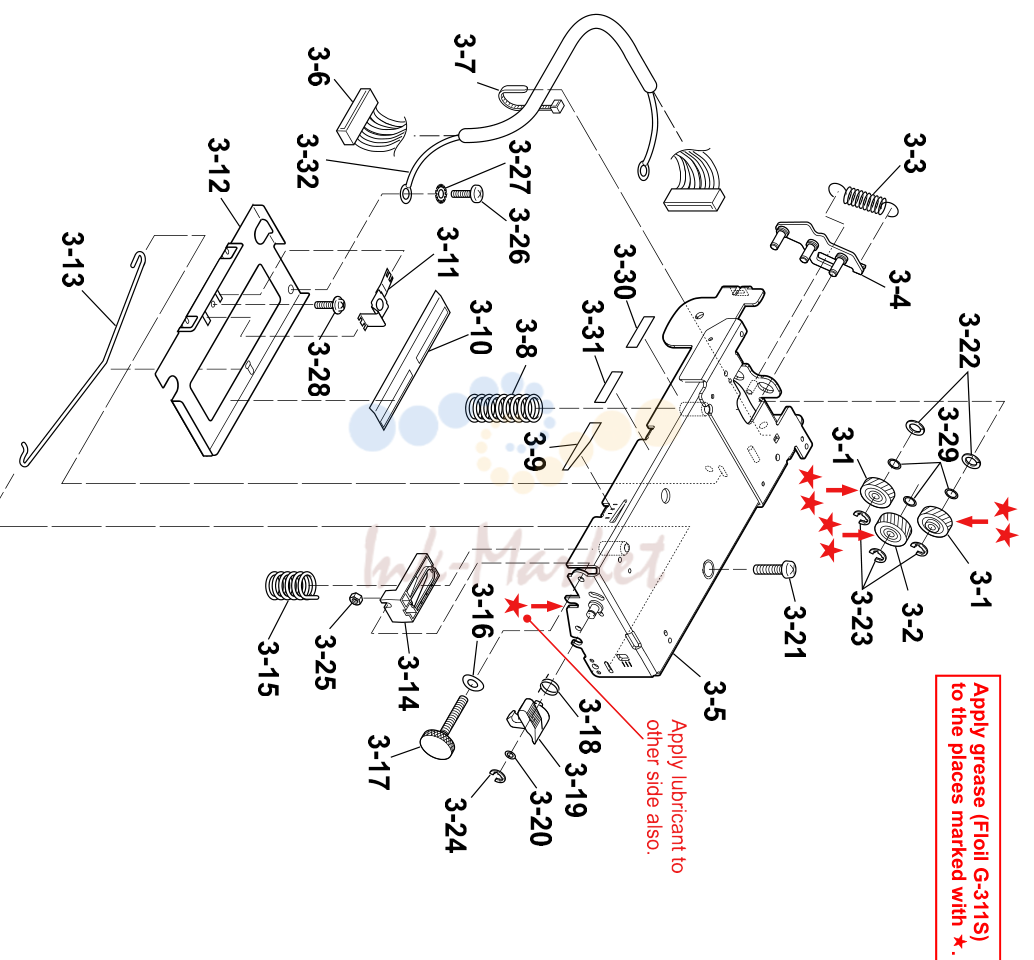

4. places
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 3-1 | Idle Gear A Sub Assembly JE99683-0 | ||
| 3-2 | Idle Gear B Sub Assembly JE99684-0 | ||
| 3-3 | Gear Plate Spring JE99651-0 | ||
| 3-4 | SA, Gear Plate JN29715-0 | ||
| 3-5 | SA, Frame U JN44706-0 | ||
| 3-6 | SA, Head Cable JN67707-0 | ||
| 3-7 | Wire Tie C6701-101# | ||
| 3-8 | Head Pressure Spring L JE99129-0 | ||
| 3-9 | Head Balance Seal JE99434-0 | ||
| 3-10 | Sheet, Cover Cable JN54908-0 | ||
| 3-11 | Head Earth Plate JE99117-0 | ||
| 3-12 | Head Plate JE99011-0 | ||
| 3-13 | Offset Spring JE99016-0 | ||
| 3-14 | Slider JE99048-0 | ||
| 3-15 | Head Pressure Spring R JE99130-0 | ||
| 3-16 | Curved Washer JE99065-0 | ||
| 3-17 | Adjust Screw JE99192-0 | ||
| 3-18 | Open Lever Spring JE99019-0 | ||
| 3-19 | Lever, Head Up JN14201-0 | ||
| 3-20 | Polyslider Washer JE99064-0 | ||
| 3-21 | Nyrock Screw JE99066-0 | ||
| 3-22 | Polyslider 1 JN39902-0 | ||
| 3-23 | E-Ring, 3.0 E60330-000F | ||
| 3-24 | E-Ring, 2.0 E60320-000F | ||
| 3-25 | Nut, M3 E40130-000F | ||
| 3-26 | Screw, BH (N), M4.0x4 E00540-040WF | ||
| 3-27 | Washer, EXT, T (N), 4 E50740-000WF | ||
| 3-28 | Screw, PH (TP), M3.0x8 E04230-080F | ||
| 3-29 | Polyslider JN39901-0 | ||
| 3-30 | Label 2, Caution, Head AH90935-0 1 English | ||
| 3-31 | Label 7, Caution, Head AR99902-0 1 For CSA/French | ||
| 3-31 | Label 6, Caution, Head AR99901-0 1 For CSE/German | ||
| 3-32 | SA, Head Earth Cable JN67712-0 |

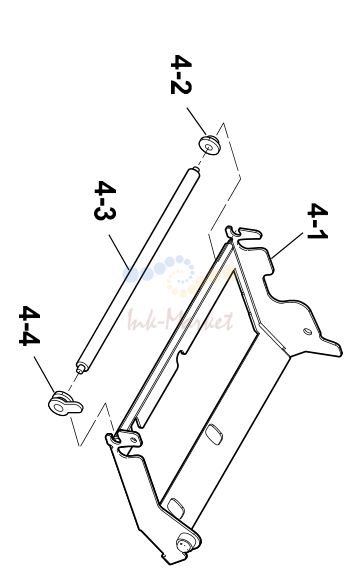

5. DRAWING
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 4-1 | SA, Front Tension JN34701-0 | ||
| 4-2 | Bushing JE99705-0 | ||
| 4-3 | Shaft, Ribbon Guide FM JN32002-0 | ||
| 4-4 | Bushing JE99704-0 |

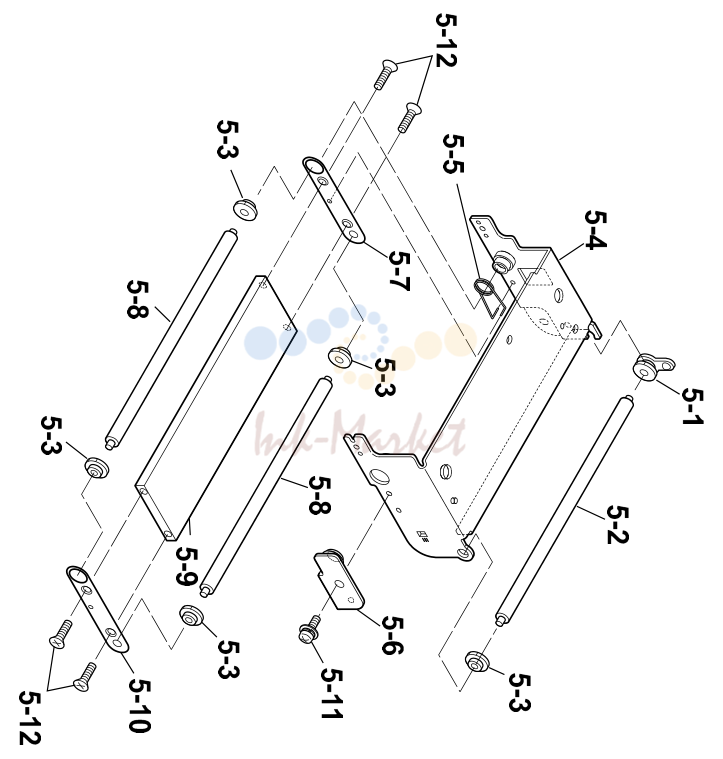

6. DRAWING
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 5-1 | Bushing JE99704-0 | ||
| 5-2 | Ribbon Guide Roller E JE99710-0 | ||
| 5-3 | Bushing JE99705-0 | ||
| 5-4 | SA, Frame Rear JN44705-0 | ||
| 5-5 | Rear Arm Spring JE99650-0 | ||
| 5-6 | SA, Plate Stopper Rear JN44708-0 | ||
| 5-7 | Side Plate L JE99639-0 | ||
| 5-8 | Ribbon Guide Roller C JE99709-0 | ||
| 5-9 | Beam JE99667-0 | ||
| 5-10 | Side Plate R JE99640-0 | ||
| 5-11 | Screw, PH (SW+PW), M3.0x5 E04030-050F | ||
| 5-12 | Screw, FT, M3.0x6 E00230-060F |

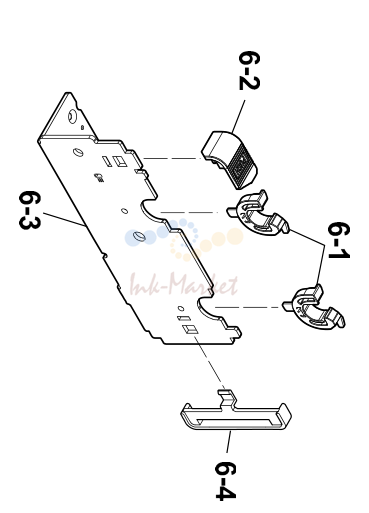

7. DRAWING
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 6-1 | Holder, Ribbon Shaft JN34201-0 | ||
| 6-2 | Knob, Ribbon Unit JN34202-0 | ||
| 6-3 | Frame, Ribbon R JN34104-0 | ||
| 6-4 | Plate, Ribbon Frame JN36202-0 |

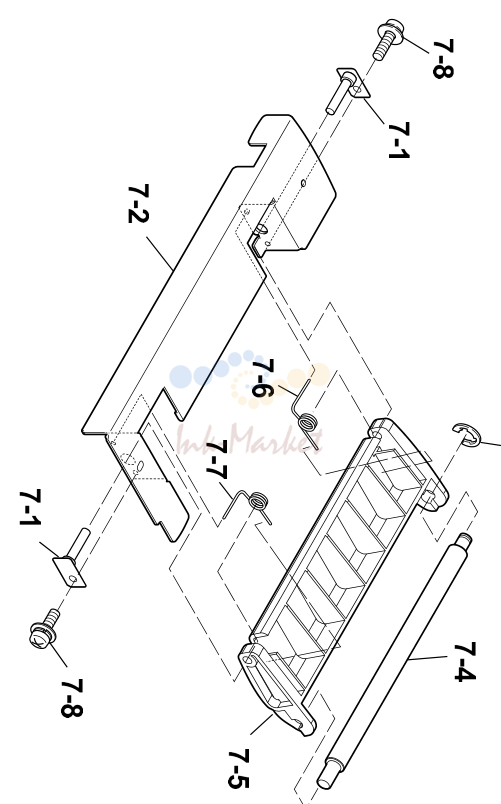

8. DRAWING
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 7-1 | SA, Damper Shaft JN29703-0 | ||
| 7-2 | Frame, Damper JN24105-0 1 Metal | ||
| 7-3 | E-Ring, 4.0 E60340-000F | ||
| 7-4 | Shaft, Damper JN22005-0 | ||
| 7-5 | Frame, Damper JN24203-0 1 Plastic | ||
| 7-6 | Spring, Damper L JN23603-0 | ||
| 7-7 | Spring, Damper R JN23602-0 | ||
| 7-8 | Screw, PH (SW+PW), M3.0x5 E04030-050F |

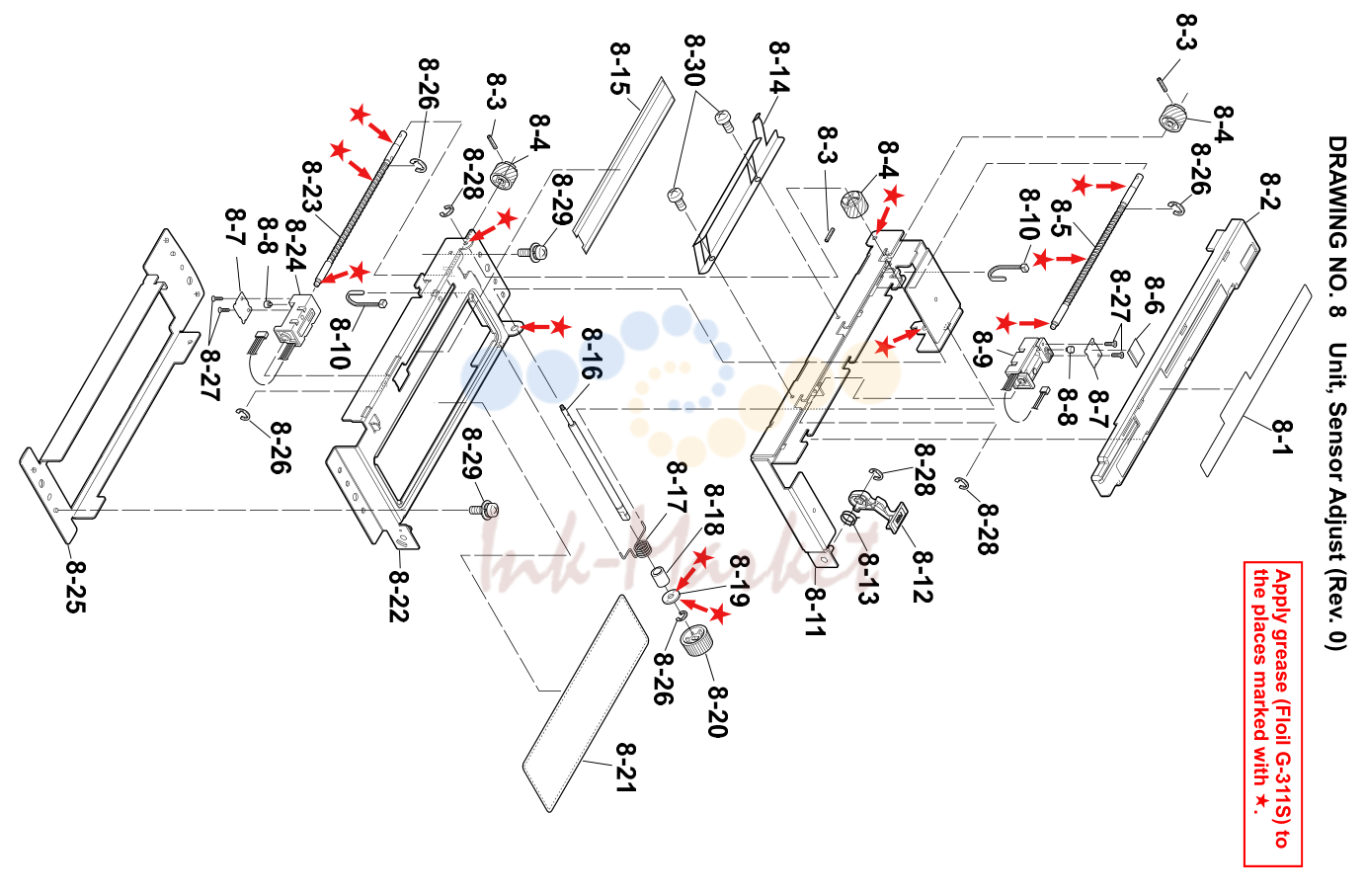

9. places
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 8-1 | Open Guide Seal JE99179-0 | ||
| 8-2 | Cover, Sensor Adjust JN24208-0 | ||
| 8-3 | Pin, Teeth Spring, 1.2x8 E70412-080F | ||
| 8-4 | Screw Gear JE99279-0 | ||
| 8-5 | Shaft, Screw Sensor U JN22004-0 | ||
| 8-6 | Position Label JE99281-0 | ||
| 8-7 | Stopper Plate JE99275-0 | ||
| 8-8 | Move Pin JA99067-0 | ||
| 8-9 | SA, Sensor U JN48704-0 1 Adjustable type | ||
| 8-10 | Wire Tie C6701-101# | ||
| 8-11 | SA, Open Guide U JN29702-0 | ||
| 8-12 | Open Guide Lever JN24228-0 | ||
| 8-13 | Open Guide Lever Spring JE99132-0 | ||
| 8-14 | Paper Guide Plate JE99228-0 | ||
| 8-15 | Sheet, Sensor Adjust JN54909-0 | ||
| 8-16 | Shaft, Sensor Adjust JN22001-0 | ||
| 8-17 | Spring, Guide Sensor Up JN23601-0 | ||
| 8-18 | Bushing 1, Adjust Sensor JN22009-0 | ||
| 8-19 | Bushing 2, Adjust Sensor JN22010-0 | ||
| 8-20 | Knob, Sensor Adjust JN24201-0 | ||
| 8-21 | Cover, RFID JN24204-0 | ||
| 8-22 | SA, Open Guide L JN29705-0 | ||
| 8-23 | Shaft, Screw Sensor L JN22006-0 | ||
| 8-24 | SA, Sensor Bottom JN48705-0 1 Adjustable type | ||
| 8-25 | Holder, Sensor L JN24101-0 | ||
| 8-26 | E-Ring, 3.0 E60330-000F | ||
| 8-27 | Screw, No.0, FHT (BT#1), M2.0x4 E13220-040F | ||
| 8-28 | E-Ring, 2.0 E60320-000F | ||
| 8-29 | Screw, PH (SW+PW), M3.0x5 E04030-050F | ||
| 8-30 | Screw, PH, M3.0x3 E00130-030F |
10. place

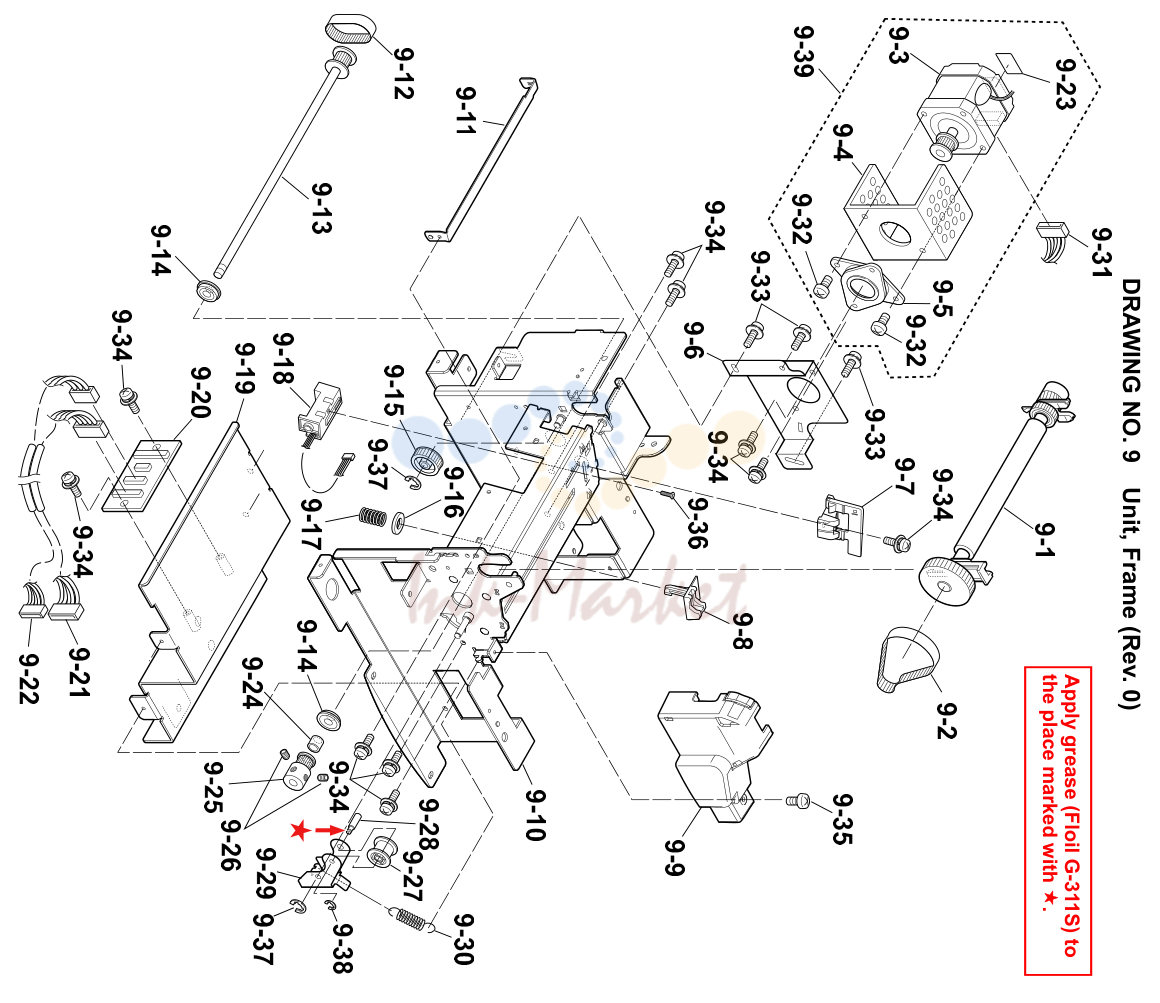

| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 9-1 | Unit, Roller Platen JN28801-0 | ||
| 9-2 | Belt, Platen Drive JN26902-0 | ||
| 9-3 | SA, Motor (with thermistor) ---- 1 Not supplied | ||
| 9-4 | Plate, Heat Sink Motor JN24109-0 | ||
| 9-5 | Flange, Motor ---- 1 Not supplied | ||
| 9-6 | Bracket, Motor JN24108-0 | ||
| 9-7 | SA, Sensor U JN48701-0 1 Fixed type | ||
| 9-8 | Paper Guide JE99045-0 | ||
| 9-9 | Cover, Pulley JN24207-0 | ||
| 9-10 | SA, Frame JN44701-0 | ||
| 9-11 | Plate, Peel JN24107-0 | ||
| 9-12 | Belt, Motor Drive JN26901-0 | ||
| 9-13 | SA 1, Drive Shaft JN22702-0 | ||
| 9-14 | Bearing, Drive Shaft JN21901-0 | ||
| 9-15 | Idle Gear Sub Assembly JE99446-0 | ||
| 9-16 | Friction Cork JE99037-0 | ||
| 9-17 | Paper Guide Spring JE99017-0 | ||
| 9-18 | SA, Sensor Bottom JN48702-0 1 Fixed type | ||
| 9-19 | SA, Frame Center JN44707-0 | ||
| 9-20 | SA, Connect PCB JN66725-0 | ||
| 9-21 | SA, Option Cable 1 JN67715-0 | ||
| 9-22 | SA, Option Cable 2 JN67716-0 | ||
| 9-23 | Label 5, Caution Head AK99925-0 | ||
| 9-24 | Bushing, Motor Drive JN22011-0 | ||
| 9-25 | Pulley, Drive Shaft JN20302-0 | ||
| 9-26 | Screw, HSS (KCP), M3.0x5 E30130-050F | ||
| 9-27 | Tension Pulley JE99154-0 | ||
| 9-28 | Tensioner Pin JE99136-0 | ||
| 9-29 | Plate, Tension JN24110-0 | ||
| 9-30 | Tension Spring JE99131-0 | ||
| 9-31 | SA, PF MTR Cable JN67705-0 | ||
| 9-32 | Screw, PH, M3.0x6 E00130-060F | ||
| 9-33 | Screw, PH (SW+PW), M3.0x5 E04030-050F | ||
| 9-34 | Screw, PH (SW+PW), M3.0x6 E04030-060F | ||
| 9-35 | Screw, BH, M3.0x5K E00530-050KF | ||
| 9-36 | Screw, No.0, FHT (BT#1), M2.0x8 E13220-080F | ||
| 9-37 | E-Ring, 3.0 E60330-000F | ||
| 9-38 | E-Ring, 2.0 E60320-000F | ||
| 9-39 | Unit, Motor JN25801-0 |

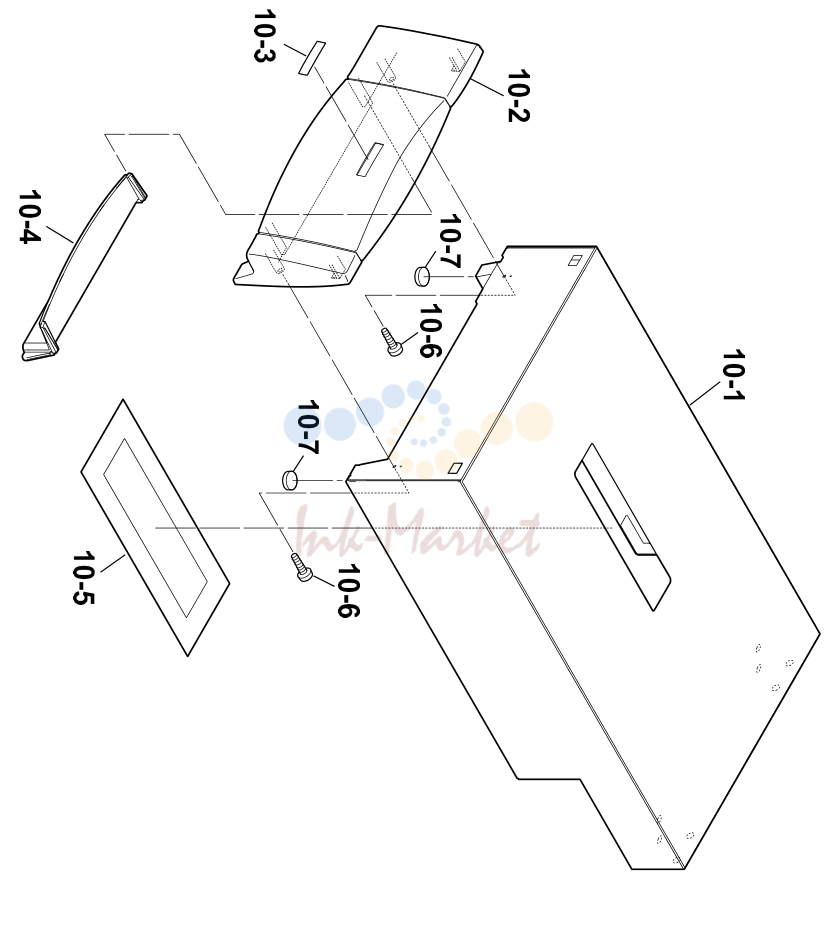

11. DRAWING
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 10-1 | SA1, Top Cover JN56710-0 | ||
| 10-2 | Cover, Front Top JN56207-0 | ||
| 10-3 | Logo, CITIZEN JN54201-0 | ||
| 10-4 | Cover, Cutter Blind JN56208-0 | ||
| 10-5 | Cover, Window JN54101-0 | ||
| 10-6 | Screw, PHT (#2), M3.0x6 E10130-060F | ||
| 10-7 | Spacer Leg, Case U JN56114-0 |

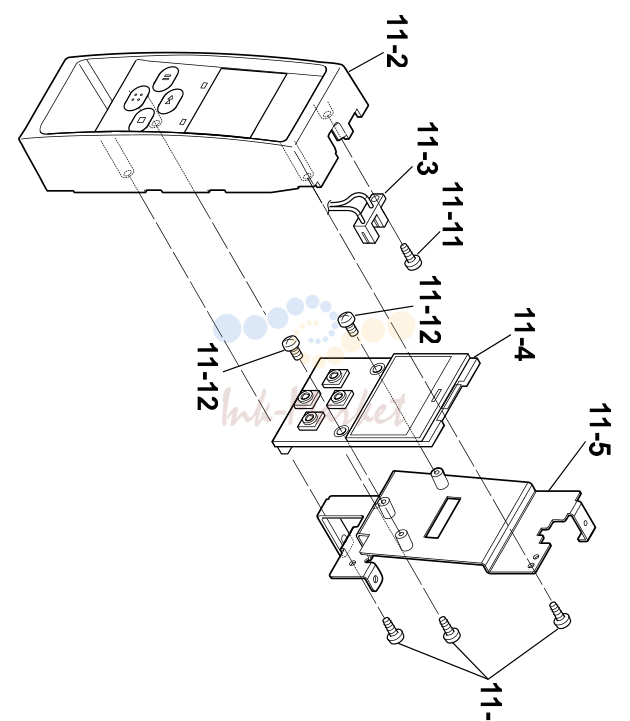

12. DRAWING
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 11-1 | Sheet, Ope-Pane JN54901-0 | ||
| 11-2 | Cover, Ope-Pane JN56202-0 | ||
| 11-3 | SA, Cover Open Sens JN68705-0 | ||
| 11-4 | SA, Ope-Pane PCB JN66704-0 | ||
| 11-5 | SA, Ope-Pane Plate JN56706-0 | ||
| 11-6 | Switch, Pause JN56212-0 | ||
| 11-7 | Switch, Feed JN56211-0 | ||
| 11-8 | Switch, Menu JN56210-0 | ||
| 11-9 | Switch, Stop JN56213-0 | ||
| 11-10 | Cover, LCD JN54102-0 | ||
| 11-11 | Screw, PHT (#2), M3.0x6 E10130-060F | ||
| 11-12 | Screw, BH, M3.0x5 E00530-050F |

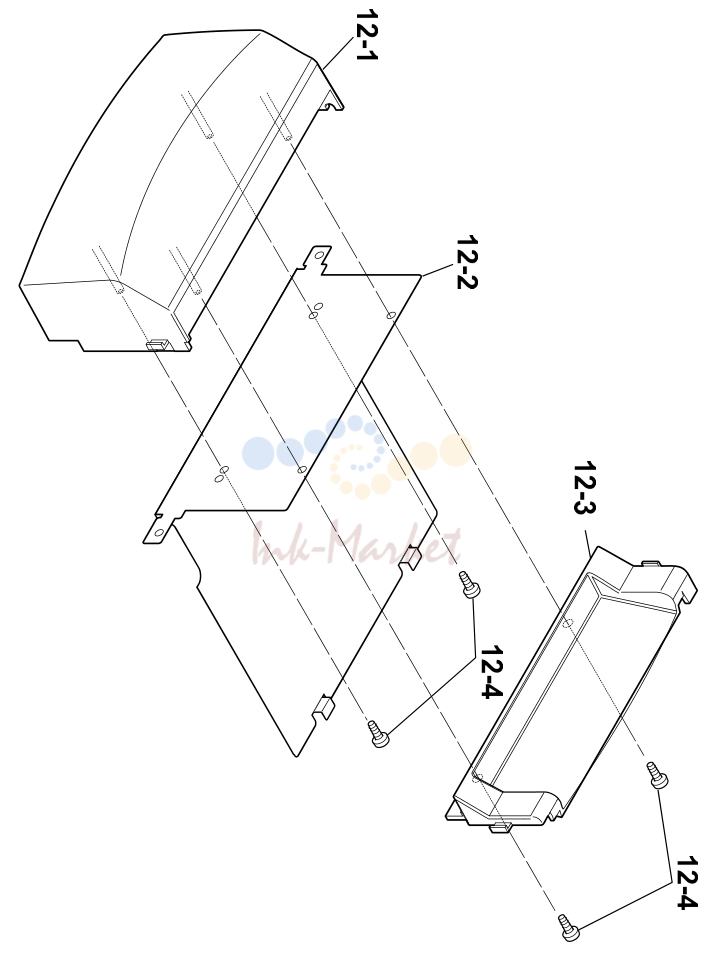

13. DRAWING
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 12-1 | Cover, Front Center JN56204-0 | ||
| 12-2 | Plate, Front Cover JN56121-0 | ||
| 12-3 | Cover, Front JN56205-0 | ||
| 12-4 | Screw, PHT (#2), M3.0x6 E10130-060F |

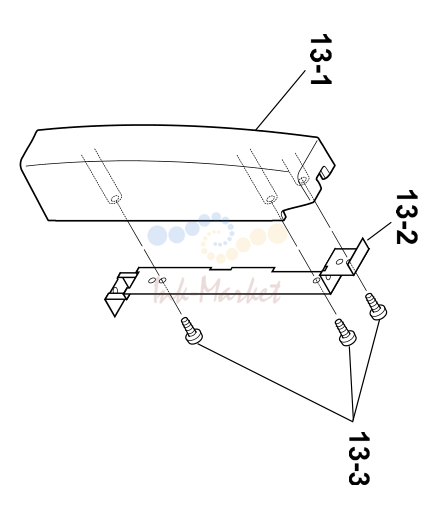

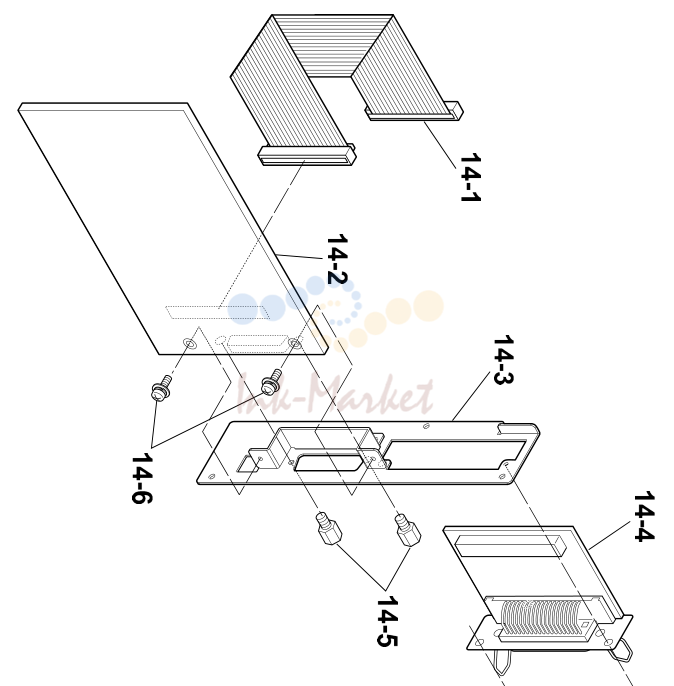

14. DRAWING
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 13-1 | Cover, Front Right JN56203-0 | ||
| 13-2 | Plate, Front Right JN56120-0 | ||
| 13-3 | Screw, PHT (#2), M3.0x6 E10130-060F |
15. DRAWING
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 14-1 | SA, Centro Cable JN67708-0 | ||
| 14-2 | SA, Main PCB (200) JN66701-0 | ||
| 14-3 | SA, Holder I/F JN56711-0 | ||
| 14-4 | Unit, Centro PCB JM66825-1 | ||
| 14-5 | Lock Screw (Inch) C6390-054# | ||
| 14-6 | Screw, PH (SW+PW), M3.0x5 E04030-050F | ||
| 14-7 | Screw, BH, M3.0x5 E00530-050F |
